Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

China Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide supplier
Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide supplier Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide supplier Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide supplier Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide supplier Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide supplier

Large Image :  Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

Product Details:

Place of Origin: CHINA
Brand Name: HUATEC
Certification: ISO CE
Model Number: HDL-430L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: in carton
Payment Terms: T/T, Western Union
Supply Ability: 500
Contact Now
Detailed Product Description
The Size Of The Film: 8 X 10 Cm To 43 Cm Wide The Running Time: 7 Minutes To 23 Minutes
Inlet Velocity: 322~92 Mm / Min Power: 220~240V16A 50 Or 60Hz
Weight: 85 Kg (tank Without Liquid) 115 Kg (filled With Water)







Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide





HUATEC NDT HDL-430L industrial testing X Ray film developer

(1) professional grade industrial flaw detector HDL-430L

NDT HDL-430L industrial ray film washing machine is our company's independent research and development products for two years. According to the new products developed by GB/T4730-2005 "non destructive testing of pressure equipment" and GB/T15786-2002 "industrial ray film flushing machine", our company has independent intellectual property rights.

The NDT HDL-430L industrial radiographic flushing machine is the first professional industrial radiographic film washing machine designed for the first time at home and abroad by using the new roller film without inspection turning. The shell is made of ABS material and has beautiful appearance. The image contrast is large and the image is clear.

The new generation of industrial flaw detector developed and recommended by ITW group.

In view of some hedge films that require a high level of enterprises (such as pressure vessels, space travel business), our company has developed this professional washing machine to solve the problems of the traditional film washing machine (usually made by medical tablet machine) in the process of washing film, which is impermeable, scratched and produced by water lines. This type of model mainly has the following highlights:

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide



1. increase the fixing time and the running time of the punching machine, increase the fixing time, fully fix the film, and ensure that the high quality film is washed out.

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

2. multipath photoelectric sensor

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

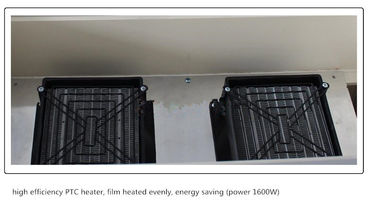

3. high efficiency PTC heater

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

4. process trend

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

5. When the washing machine is in the wash piece, when the film is at the bottom of each channel frame at the bottom of the 180 degree, the film turns the maximum force distance, it will stick to the turning guide of the axle frame. When the axle frame uses the arc PVC guide plate (such as the 42 part in the diagram below) the film can produce scratches when the film is turned, for industrial film flushing. This kind of machine produces this kind of problem. The machine produces the misplaced roller with German Colenta technology and the roller guide at the bottom to make the film turn away from the guide friction (as shown below) to ensure the quality of the flushing.

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

6. the diameter 32mm roller is used in this machine. (the diameter of 20mm roller is usually used in other washing machine). When the flushing machine is running, the smooth running of the roller is a good solution to the pattern of the water pattern produced in the process of the washing machine. The shaft and roller materials use DuPont polymer engineering ABS plastic and 316L stainless steel to ensure that the roller will not produce "drum" and "rise crack" during the use of strong acid and alkali medicine.

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

7. The rack is different from the traditional spray frame. It is made of high-grade aluminum alloy. It is not only lightweight but also effective in preventing rusting.

Industrial Testing X Ray Film Developer Machine For 8 X 10 Cm To 43 Cm Wide

Technical parameters:

The size of the film is 8 x 10 cm to 43 cm wide

The running time is 7 minutes to 23 minutes

Inlet velocity 322~92 mm / min

80-280 seconds of development

The volume of the drug tank is 12 litres

Supplementary quantity automatic test supplement 10-500 milliliters /0.5 square meters

The developing temperature can be adjusted from 20-40 degrees

The setting temperature is automatically adjusted according to the developing temperature

40-70 degrees of drying temperature

5~30 degree of water temperature

Less than 2 liters / minutes during the operation of water consumption film

Power 220~240V16A 50 or 60Hz

Weight 85 kg (tank without liquid) 115 kg (filled with water)

Volume (long * width * height) 100 x 70 x 64 cm (including stent 106 cm)
