Product Details:
|
| Design Style: | Handheld | Model: | Twin Needle |
|---|---|---|---|
| Dial Value: | 0～ 100HC | Needle Pressing Stroke: | 2.5 Mm |
| Recommended Range: | 10～ 90HC | Weight: | 0.5 Kg |
| High Light: | non destructive testing machine,ndt inspection tools |
||

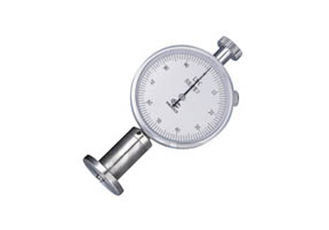

Accurate handheld design peak hold type durometer LX-C-2 twin needle, high precision shore durometer
Function:
LX-C-2 measured compression rate of 50% when stress for 0.5kg/c ㎡above contains a foaming made of rubber microporous material hardness, and can also be used for other similar hardness of materials.
Features:
1. pointer type indicator, reading is convenient, accurate, high precision;
2. handheld design, easy to carry, can be a hand-held measurement, can also be mounted on a supporting test rack test.
Specifications and parameters:
Dial value: 0～ 100HC;
Needle pressing stroke: 2.5 mm;
Recommended range: 10～ 90HC;
The pressing head size: SR2.5 mm;
Weight: 0.5 kg.
Structure chart:
