Product Details:
|
| Height: | 1—15mm | Material: | Stainless Steel |
|---|---|---|---|
| Usage: | Weld Testing | Application: | Welding Seam Detecting |
| Brand: | HUATEC | Origin: | Beijing China |
| High Light: | portable x-ray detector,industrial x ray film viewer |
||

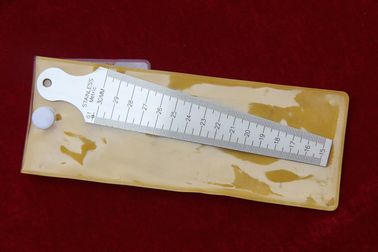

Taper gauge Wedling Gauge Weld Gauge Bridge Cam Type Master fillet Weld Gauge
Visual inspection, welding seam testing
Pipe pit gauge
WELDING GAUGE SERIES
Wide-seat square Taper gauge
spec:63*40-630*400mm
180°malleable iron square MG-11(metric system)
G.A.L. HI-LO Welding Gauge Measures internal Alignments G.A.L ECONOMY Single Purpose HI-LO Welding Gauge
Automatic Weld Size Weld Gauge FAN-SHAPED Gauge
BITING EDGE GAUGE
MG-8 Cam Type Weld Gauge MG-11 Cam Type Weld Gauge
|
Measurement Items |
Range |
Parameters |
Tools |
|
Width |
0—20mm |
0.2 |
0.02 vernier caliper |
|
Height |
0—12mm |
Plug gauge, tabulate gauge |
|
|
Width of Fillet Weld |
0—20mm |
||
|
Movable Bevel Angle |
20°, 30°, |
±2° |
±30' angle gauge |
|
Single-side Bevel Angle |
117.5—122.5 |
±30' |
±10″universal gauge |
|
Bevel Angle |
45°, 55°, |
±30' |
±10″universal gauge |
|
Gap Size |
0.5-3.5mm |
0.1 |
0.02 vernier caliper |
Welding Gauge Model HJ30
The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement
Welding Gauge ModelHJC60/40
The gauge consists of main scale, height gauge, undercut depthgauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.
Welding Gauge Model HJC60
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
0—15 |
0.2 |
|
Height of Fillet Weld |
0.2 |
||
|
Thickness of Fillet Weld |
0.2 |
||
|
Width |
0—60 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
80—160 |
30 |
|
|
Gap Size |
0.5—6 |
0.1 |
|
Welding Gauge ModelHJC40
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
|
0.2 |
|
Height of Fillet Weld |
0—12 |
0.2 |
|
|
Thickness of Fillet Weld |
0—15 |
0.2 |
|
|
Width |
0—40 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
≤150 |
30 |
|
|
Gap Size |
0.5—5 |
0.1 |
|
Inspection mirror
