Product Details:
|
| Output High Voltage: | 0.6kV ~ 50KV (stepless Continuous Adjustable) | Detection Thickness: | 0.1~35mm (affected By The Soil Environment On Site) |
|---|---|---|---|
| Battery: | 12V/2200mA | Power Consumption: | ≤5W |
| High Light: | geomembrane leak detector ndt equipment,HUATEC Non Destructive Testing Equipment,0.6kV Non Destructive Testing Equipment |
||
High Voltage And Efficient Detection, Can Cooperate With Soil Moisture Geomembrane Leak Detector HD-107

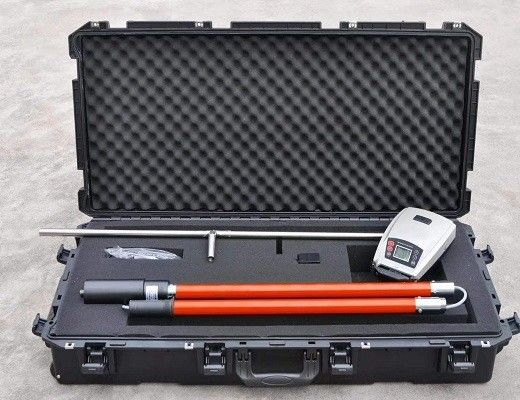

Geomembrane Leak Detector HD-107:
Geomembrane leak detection equipment, at the scene of the absorption adopt a generation of user feedback, on the basis of the integration of various conditions around the application experience, further optimization, by testing the large, improve the core component of pressure, make the output voltage of up to 50 kv, according to check the thickness of the geomembrane, conductivity, and soil dry and wet sensitivity can fit match, with better easily detect funnelled position, and continue to alarm prompt.This system equipment still has good portability and operability. After the upgrade, the output is more linear and the detection of leakage point is more efficient. In view of the large battery capacity doubling to 4400AMH, it is more suitable for long-term continuous construction in the field.
The system equipment is suitable for floor waterproofing, pond waterproofing, pit leakage, river dam waterproofing and other construction waterproofing detection. Suitable geomembrane type: HDPE LDPE PVC polypropylene asphalt geomembrane conductive supported geomembrane any other electrical insulation material. Suitable type of geomembrane subgrade: compacted clay with suitable electrical conductivity concrete suitable electrical conductivity GCL conductive aluminum foil of geosynthetics, etc.
Main technical performance:
| 1. Output high voltage: | 0.6kV ~ 50KV (stepless continuous adjustable) |
| 2. Detection thickness: | 0.1~35mm (affected by the soil environment on site) |
| 3. Direct indication of output high voltage value | |
| 4. Variable sensitivity | |
| 5. Battery: | 12V/2200mA |
| 6. Power consumption: | ≤5W |
| 7. Main engine volume: | 220 × 130 × 88 mm |
| 8. With background light | |
| 9. Instantaneous power on, automatic power off and shutdown | |
| 10.3 LIQUID crystal display output voltage, full touch panel | |
| 11. Alarm: | Peak-ringing alarm |
Geomembrane testing knowledge:
1. Visual inspection is mainly to inspect the appearance of the geo-membrane laid, the quality of the weld, the T-type welding, the basement debris and so on. All the construction personnel should carry out this work in the whole construction process.
2. Vacuum detection and air pressure detection. The aerating strength of the aerating pressure detection is 0.25Mpa, and there is no air leakage for 5 minutes.
3. Tensile test, the standard is to do the stripping and shear test, the weld is not torn open and the base metal is torn and destroyed, then the welding is qualified.
4, appearance inspection, found that there are holes on the surface of the geomembrembration defects and damage in the process of welding leakage, welding, damage and other cases, the geomembrembration should be repaired with fresh base metal in time, and each side of the scar exceeds the damaged parts 10-20cm.
HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.WeChat:19520504939
