Product Details:
|
| Selling Units:: | Single Item | Single Package Size:: | 37X23X9 Cm |
|---|---|---|---|
| Size:: | 114mm*58mm*29mm | Humidity:: | 20%RH -- 90%RH |
| Power:: | Electronic, AAA Battery X 3 | Model Number:: | TG-1660 |
| High Light: | bluetooth ultrasonic thickness tester,tg-1660 coating thickness gauge,f/n double function coating thickness gauge |
||

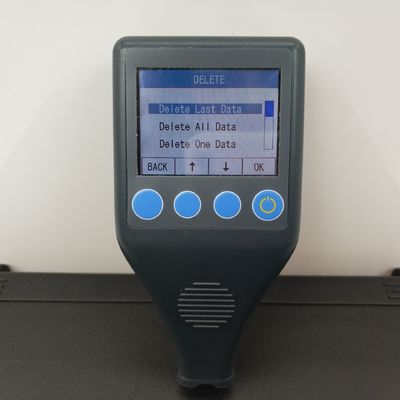

HUATEC Economic and practical F/N Double Function Coating Thickness Gauge TG-1660
Specification
| Probe Type | F | N | |
| Working Theory | Magnetic | Eddy Current | |
| Testing Range(um) | 0-2000 | 0-1500 0-40 (chromium plating on copper) | |
| Min. Resolution)(um) | 0.1 | 0.1 | |
| Display Resolution | Zero Calibration(um) | ±(3%H+1) | ±(3%H+1) |
| 2 points calibration(um) | ±{(1-3)%H+1} | ±{(1-3)%H+1} | |
| Testing Condition | Min. Radius of curvature(mm) | Convex 1.5 | Convex 3 |
| Diameter Of minimum area(mm) | ∅ 7 | ∅ 5 | |
| Critical thickness of base(mm) | 0.5 | 0.3 | |
| Operation condition | Temperature | 0 ℃ -- 40 ℃ | |
| Humidity | 20%RH -- 90%RH | ||
| Magnetic Environment | 20%RH -- 90%RH | ||
| Power | AAA battery X 3 | ||
| Size | 114mm*58mm*29mm | ||
| Weight | 70g(without battery) | ||
HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.
