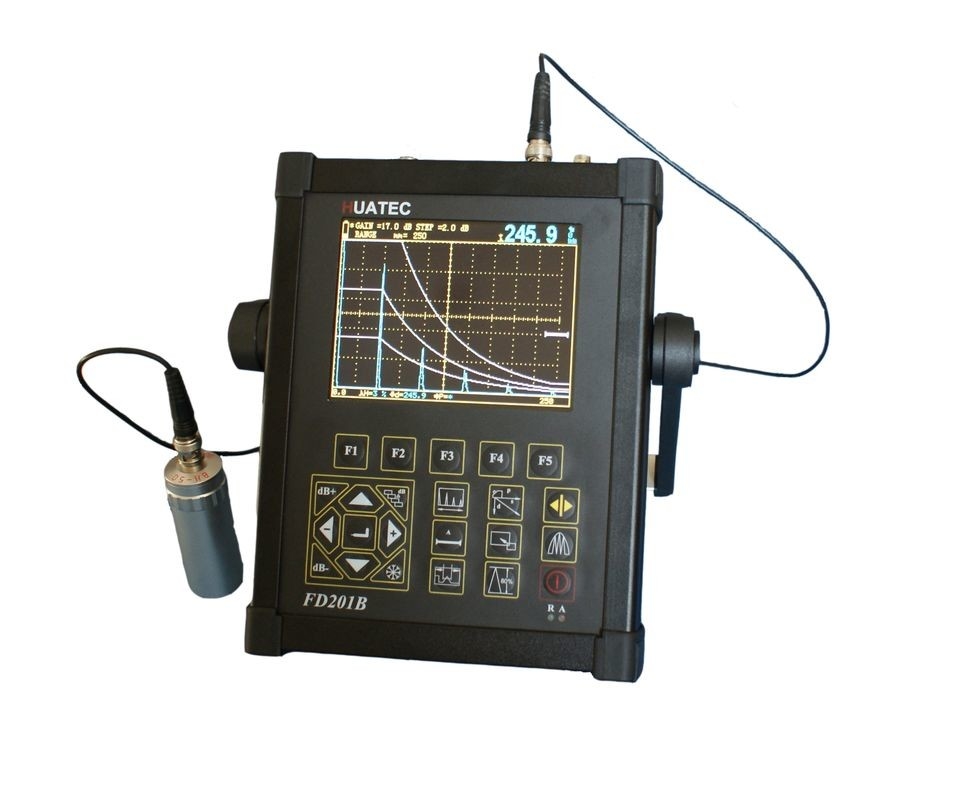

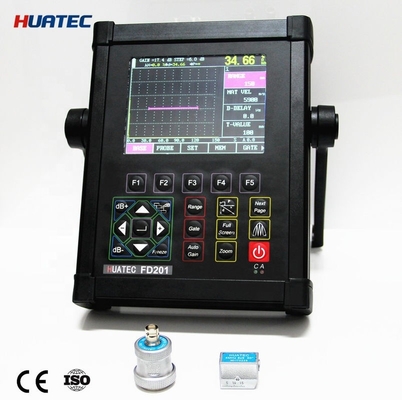

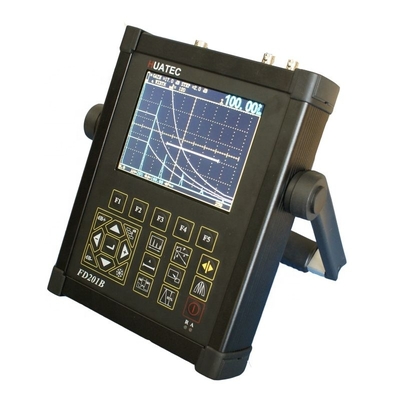

Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test

Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test
Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test

Large Image :  Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD-201B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Oem FD201B Ultrasonic Flaw Detection Equipment Ndt Test

Description
Customized Support: OEM Vertical Linearity Error: ≤3%
Sensitivity Leavings: >60dB Dynamic Range: >32dB
Frequency Range(MHz): 0.5 ~ 15 H*W*D(mm): 240*180*50
High Light:

ndt test ultrasonic flaw detection equipment

,

huatec ultrasonic flaw detection equipment

,

oem flaw detection gauge

Digital ultrasonic flaw detector FD201B, ultrasonic detector , NDT, UT, ndt test



Features for digital ultrasonic flaw detector FD201B:

DAC, AVG curves

AWS function

High-speed capture and very low noise

Gate and DAC alarm;Acoustic-Optical alarm

Solid metal housing (IP65)

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

1. Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, )

2. Automated switch three staff gauge ((Depth d, level p, distance s)

3. Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated

4. Ten independence setup, any criterion can be input freely, we can work in the scene without test block

5. Big memory of 300 A graph and 30000 thickness value

6. Automated gain and gain scan, automated echo degree

7. Peak hold and Peak memory

8. Powerful PC software and reports can be export to excel

9. RS232/USB

10 The embeded software can be online updated

11. Li battery, continue working time up to 10 hours

12. Display freeze

13. Lock and unlock function of system parameters

14. Dormancy and screen savers

15. Electronic clock calendar

16. Two gates setting and alarm indication



Specifications:

Title Parameter Title Parameter
Measuring Range(mm) 2.5 ~ 5000 Measurement Mode Single, Dual, Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.2% Pulse Displacement(μs) -20 ~ +3400
Sensitivity Leavings >60dB Zero(μs) 0.0 ~ 99.99

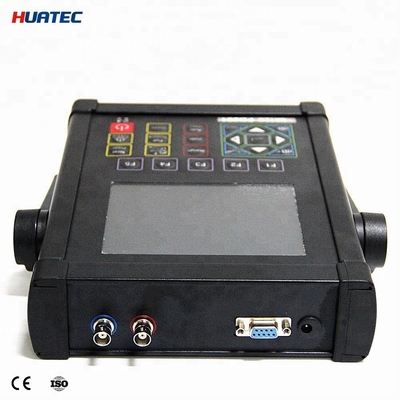

Dynamic range >32dB Port Type BNC
Resolving Power ≥40 Operating Temperature (c) -20~50
Frequency Range(MHz) 0.5 ~ 15 H×W×D(mm) 240×180×50
Gain(dB) 0 ~ 110 Weight(kg) 1.8
Material Velocity(m/s) 1000 ~ 9999

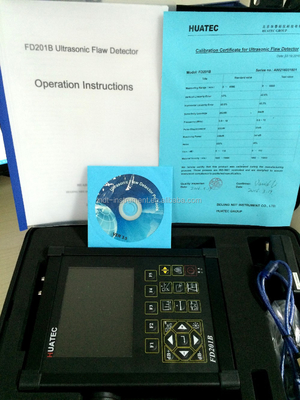

Standard delivery

Digital Ultrasonic Flaw Detector Main unit

2.5MHz-20 straight probe

4MHz-8x9mm, 60 degree angle probe

4A/9V power adapter

Probe connection cable (BNC to BNC)

Probe connection cable (BNC to LEMO)

USB2.0 –RS232 converter

Instruction manual

Calibration certificate

Carrying case

Additional accessories

Data managing software

Data managing cable RS232

Leather bag

All kinds of angle and straight probe, double crystal probe at any size with frequency 0.5—15MHz

Connection cable for probe LEMO and BNC

Lithium ion battery

Power adapter (4A/9V)

Test block V1

Test block V2

Test block DAC,
