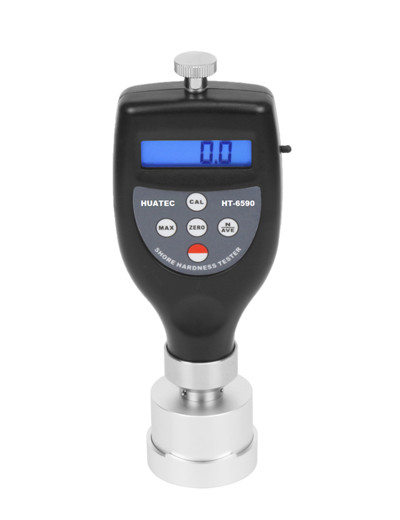

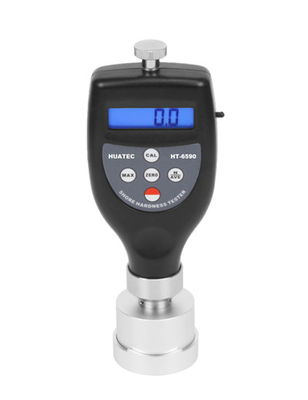

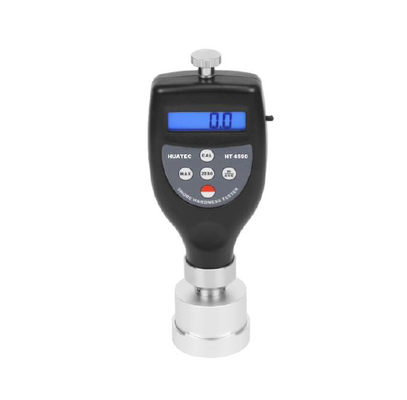

Bluetooth Shore Durometer Textile Winding Density Weaving Warp HT-6590

Bluetooth Shore Durometer Textile Winding Density Weaving Warp HT-6590
Bluetooth Shore Durometer Textile Winding Density Weaving Warp HT-6590 Bluetooth Shore Durometer Textile Winding Density Weaving Warp HT-6590

Large Image :  Bluetooth Shore Durometer Textile Winding Density Weaving Warp HT-6590

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HT-6590
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Bluetooth Shore Durometer Textile Winding Density Weaving Warp HT-6590

Description
Power Supply: 2x1.5V AAA(UM-4)Battery Working Face Flat: 45mm(when Using The Plane End Of The Probe)
Working Face Radius: 55mm (when Using The Curved End Of The Probe) Operating: Temperature:0~40C Humidity:<80%RH
Dimensions: 177x65x45mm Weight: 285g
High Light:

bluetooth shore durometer

,

convertible probe shore durometer

,

bluetooth shore hardness tester

Textile Winding Density Weaving Warp Durometer HT-6590

Features

* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm. * With average calculate, peak value deposit function. * Apply USB data output to connect with PC. * Bluetooth data output option.



Principle

The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as the Shore A hardness testing.



Application

To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc. Indenter ball 2.5mm is for closely wound bobbins of synthetic, finished fibers and filaments Indenter ball 5mm is for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads Indenter ball 10mm is for very loosely wound bobbins of thick yarns, such as carpet yarns



Specifications

Model HT-6590-2.5 HT-6590-5 HT-6590-10
Parameters Tested value/Mean value/Max.value
Indenter Ball Φ2.5mm Ball Φ5mm Ball Φ10mm
Convertible Probe

The curved end of the probe is used for the bobbin with a diameter

less than or equal to 400mm, and the plane end of the probe is suit able for the bobbin with a diameter greater than 400mm

Area Of Application For closely wound bobbins of syntheti c, finished fibers an d filaments For loosely wound bo bbins of synthetic fib ers and closely woun d natural fibers, yarn s and threads For very loosely wou nd bobbins of thick y arns, such as carpet yarns
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy ≤±1H
Battery Indicator Low Battery Indicator
Auto Switch Off
Depth Of Indentation 0-2.5mm
Test Pressure Approx. 12.5N
Measuring Spring Force 0.55-8.065N
Scale Diameter 51mm
Working Face Radius 55mm (when using the curved end of the probe)
Working Face Flat 45mmΦ (when using the plane end of the probe)
Operating Temperature:0~40ºC Humidity:<80%RH
Power Supply 2x1.5V AAA(UM-4)Battery
Dimensions 177x65x45mm
Weight Approx. 285g (Not including batteries)
Standard Accessories Main Unit Carrying Case Operation Manual, calibration certificate
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
