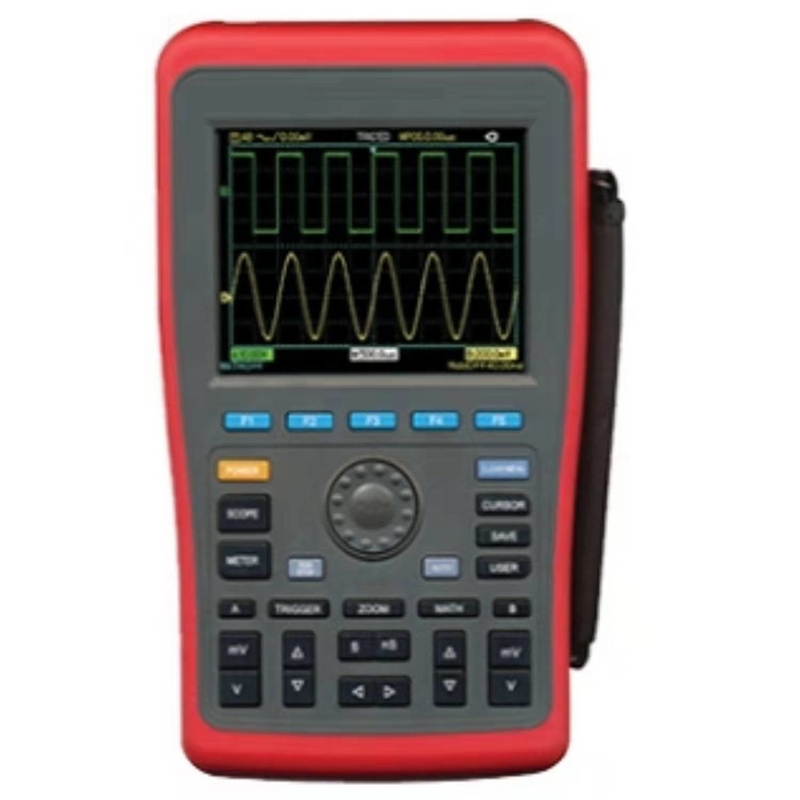

60mhz Bandwidth Non Destructive Testing Equipment Handheld Digital Storage Oscillometer

60mhz Bandwidth Non Destructive Testing Equipment Handheld Digital Storage Oscillometer
60mhz Bandwidth Non Destructive Testing Equipment Handheld Digital Storage Oscillometer

Large Image :  60mhz Bandwidth Non Destructive Testing Equipment Handheld Digital Storage Oscillometer

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: no
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

60mhz Bandwidth Non Destructive Testing Equipment Handheld Digital Storage Oscillometer

Description
Single Package Size: 39X30X12 Cm Single Gross Weight: 6.000 Kg
Maximum Sampling: 250MS/s Storage: Settings, Waveform, Bitmap
Rise Time: ≤5. 8ns Bandwidth: 60Mhz
High Light:

oscillometer non destructive testing equipment

,

60mhz bandwidth non destructive testing equipment

,

non destructive tester oscillometer

Hand-held digital storage oscillometer

1. Automatic waveform and state setting;

2, waveform, device, interface storage and waveform and Settings reproduction;

3. Screen copy function;

4, fine window extension function, accurate analysis of waveform details and overview;

5, waveform recording, storage and playback function;

6, high definition color 7. 5 inch LCD display, 320*240 resolution, black and white display;

7, a variety of waveform mathematical operation functions (including: addition, subtraction, multiplication, division);

8, multimeter function;

9, U disk upgrade function.



The basic function

Channel number 2
bandwidth 60Mhz
Maximum sampling rate 250MS/s
Rise time ≤5. 8ns
Depth of the storage 7. 5kpts
Vertical sensitivity (V/div) 5mV-50V/div
(Time base range (S /div) 5ns-50s/div
storage Settings, waveform, bitmap
triggered Edge, pulse width, video
interface

USB HOST



Multimeter specifications range precision
Dc voltage (V)

600mV/6V/60V/600V/1000V



± (1%+5)



Ac voltage (V) 45Hz 400Hz)

600mV/6V/60V/600V/700V



± (1. 2%+5) , frequency:<200Hz±
(1. 5%+5) , frequency:≥200Hz
Direct current (A) 6mA/60mA/600mA

± (1. 2%+5)



6A ± (1. 5%+5)
Ac current (A)45Hz 400Hz) 6mA/60mA/600mA ± (2%+5)
6A ± (2.5%+5)
Resistance (Ω) 6kΩ/60kΩ/600kΩ ± (1. 2%+5)
600Ω/6MΩ/60MΩ ± (1. 5%+5)

Capacitance (F)



6nF/6mF

± (5%+10)



60nF/600nF/6μF/60μF/600μF ±(4%+5)
Biggest show 5999
Automatic range



General characteristics



Power supply

Lithium battery: 7.4V 4400mAh;

Dc adapter: 100~240V 50/60Hz input, 9V 4A output

According 5. 7-inch 64K COLOR TFT LCD,320x240
Fuselage color Red + grey
Body weight 1. 8Kg
Fuselage size 268mmx168mmx60mm
Standard accessories Two probes (1:1/1:10 switchable), DC adapter, power cord, 2 current-voltage conversion modules (UT-M03,UT-M04), multimeter pen, software CD
Standard packing Carton, cloth bag, Instruction manual in Chinese
Standard packing quantity 4 Pc
Standard packing size 500mmx400mmx320mm
Gross weight of standard packing cases 16.8KG
