Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: RHL-110D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: From stock
Payment Terms: TT, L/C, Western Union
Supply Ability: 500 pcs per month

128×32 OLED Display Portable Hardness Testing Machine With Mini USB Communication Port

Description
Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS Data Interface: USB
Memory: 48~350 Group Display: 128 × 32 OLED
Overall Dimensions: 146 × 30 × 25 Mm Weight: 110g
High Light:

metal hardness tester

,

steel hardness tester



128 × 32 OLED Display Portable Hardness Testeing Machines With Mini USB Communication Port



128×32 OLED Display Portable Hardness Testing Machine With Mini USB Communication Port 0

Introduction

Model RHL-110D portable hardness tester can directly measure different types of hardness value including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV),and Shaw (HS). In accord with international standards it's also can meet the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards which are issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.

With low-power design and high-performance Li batteries which can achieve ultra-long standby time work it has more compact and flexible design increases user flexibility.



Features

All English menu display is easy to manipulate. OLED display for better use in any environments.

With Mini USB communication port.

Large capacity memory can store 48~350 groups (impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.

Conversion to tensile strength (U.T.S).

For all metallic materials.

Provide software calibration function.

High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign, display the current remaining capacity.

PC Software can be equipped to meet the higher demands in quality assurance, activities and management.



Technical Specification

Measuring range: 170~960 HLD

Measuring direction: 360°

Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS

Display: dot matrix LCD 128×32 dots

Data storage: 350 groups maxim, relative to impact times 32~1

Charging power supply: 5VDC,220VAC

Charging time: 1.5~2h

Battery: 3.7V,Li(80mAh)

Using temperature: 0 ~ 40℃

Storage temperature: -25 ~ 70℃

Continuous working period: 12h

Communication port: Mini USB

Outline dimensions: 146 × 30 × 25mm

Wight: 110g



Comparison table

Model

RHL-110D

Hardness scale

HL, HRC, HRB, HRA, HV, HB, HS

Measuring range

HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68),

HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)

Clock

Real-time data and time

Auto off

3~5 Minutes without any operation

Data Interface

USB

Power

Rechargeable Li Battery, 3.7V

Memory

48~350 group (Impact times: 32~1)

Display

128 × 32 OLED

Continuous Working time

About 12h

Charging time

1.5 ~ 2 hours

Overall dimensions

146 × 30 × 25 mm

Weight

110g



128×32 OLED Display Portable Hardness Testing Machine With Mini USB Communication Port 1128×32 OLED Display Portable Hardness Testing Machine With Mini USB Communication Port 2



Configuration



NO.

Item

Quantity





Standard Configuration

1

Main uni.

1

2

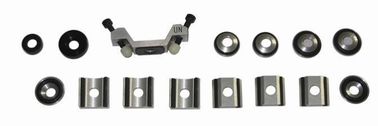

Small support ring

1

3

Cleaning brush (I)

1

4

High value test block

1

5

Charger

1

6

Communication cable

1

7

Software

1

Optional

Configuration

8

Other type of support rings



9

High, medium, and low HLD value test block



128×32 OLED Display Portable Hardness Testing Machine With Mini USB Communication Port 3

128×32 OLED Display Portable Hardness Testing Machine With Mini USB Communication Port 4
