80mm Industrial Film Portable x-ray detector , non destructive test equipment

80mm Industrial Film Portable x-ray detector , non destructive test equipment
80mm Industrial Film Portable x-ray detector , non destructive test equipment 80mm Industrial Film Portable x-ray detector , non destructive test equipment 80mm Industrial Film Portable x-ray detector , non destructive test equipment 80mm Industrial Film Portable x-ray detector , non destructive test equipment

Large Image :  80mm Industrial Film Portable x-ray detector , non destructive test equipment

Product Details:
Place of Origin: China
Brand Name: HUATEC
Model Number: SZ-17F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 3-7 working days
Payment Terms: TT, L/C, Western Union

80mm Industrial Film Portable x-ray detector , non destructive test equipment

Description
Display Type: Full English LCD Display Film Specification: 3 "× 6" -14 "× 17"
Developing Time Adjustment: 60S, 90S, 120S Dry In-out Time: 240S, 360S, 480S
Liquid Temperature Adjustment: 20 ~ 40 Degrees
High Light:

portable x-ray detector

,

weld x ray inspection machine

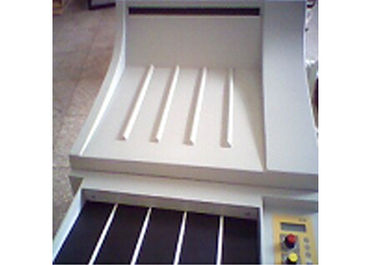

80mm Industrial film 5pcs together washing of SZ-17F- Industrial Film Washing machine Of X - Ray Flaw Detector



Display Type: Full English LCD display
Film Specification: 3 "× 6" -14 "× 17"
Developing time adjustment: 60S, 90S, 120S
Dry in-out time: 240S, 360S, 480S
Liquid temperature adjustment: 20 ~ 40 degrees
Maximum washing capacity: 80mm Industrial film 5pcs together washing, the length not limit, with guide groove.
Film-out mode: on film-out, back film-out, freedom choose.
Width of film-in mouth: 435mm.
Drug tank capacity: 8L
Complementary mode: automatic and manual, supplementary volume is free to set
Volume: 880 × 635 × 1100 (length × width × height) MM
Rinse film Variety: X-ray, NDT and other industrial film
80mm Industrial Film Portable x-ray detector , non destructive test equipment 080mm Industrial Film Portable x-ray detector , non destructive test equipment 1



Latest design of anti-dry system; heating system is not contact with developing and fixing syrup directly, there is no corrosion and extend the service life; anti-dry device over-temperature, power failure protection, prevention of man-made causes the occurrence of burned-out heating system.
* Developing and fixing bracket side guide plate used in all high-quality imported raw materials mold forming, gel stick unified specification, the adoption of international pop layering control, anyone can easily removed for cleaning and replacement of wear and tear after many years.
* Strong electrical part of the use of advanced electrical control principle, unlike the alternating current into direct current necessary to weak control, the motherboard is a high-tech integrated circuits, electronic components fewer and volume smaller. The use of AC motors resolved DC motors need the voltage conversion, carbon brush wear, easy to bad gun probe shortcoming. The reduction in electronics components, failure is almost zero design. Universal Design All English LCD display, an intuitive understanding of the working state of medicine, extending the medicine's use of time, universal knob switch, easy to understand, may at any time according to the conditions need to be replaced.
* English display self-test failure alarm.
* Checking film adopt all-closed design of the probe, solve the photoelectric sensor chip fear of corrosion and easy bad shortcomings.
* In the standby mode, the machine self-cleaning roller, anti-crystallization function.
* Unique anti-oxidation cover, to prevent the developing and fixing cross-contamination, reduce dark room with a corrosive odor, reduce the use of infringement of the upper respiratory tract personnel played a decisive role.
* Washing drying system without removing cleaning, sewage system, allows the image rich layers, film without pollution.
* 316L-grade stainless steel used in all machine to ensure the reliability of multi-use, free distribution of the machine brackets are of stainless steel.
 * Feeding liquid mode: automatic and manual. Working mode: automatic and manual. Freedom of choice.
Note: Please tell if need width of film-in to be 90mm, 100mm, and automatic liquid feeding, back film-out. Thank you.
