Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate

China Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier
Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate supplier

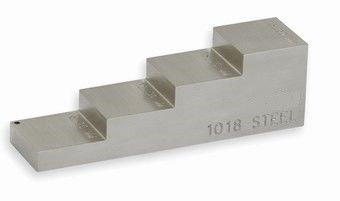

Large Image :  Thickness and linearity 4 step wedge calibration block with CE , Calibration Certificate

Product Details:

Place of Origin: China
Brand Name: HUATEC
Certification: CE, Calibration Certificate
Model Number: 4 Step Block

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: Packed in ABS engineering plastics,and then reinforced with carton for outer packing
Delivery Time: 3-7 working days,V1 and V2 have stock
Payment Terms: TT, L/C, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Calibration Block Type: 4 Step Block
Material: 1018 Carbon Steel, LY12/6063/7075 Aluminum,304 Stainless Steel Standard: ASTM E797
Dimensions: 80mm*20mm*25mm Packing: ABS Engineering Plastics

Thickness and linearity calibration Ultrasonic Calibration Block 4-Step Block



Specifications:
Calibration blocks is an important supplementary material in the Ultrasonic testing, used to calibrate the sensitivity of the ultrasonic flaw detector and ultrasonic probe. Our testing block is certificated by the authority of the state depeartment. Our products include: domestic standards UT blocks, European standard UT block, NDT block, hexagonal testing block, and so on. Processing of the special specifications UT block



Thickness and linearity calibration. This 4-Step block comes in thickness of 6.25mm, 12.50mm, 18.75mm, and 25.00mm. Step face measures 20.00mm*20.00mm. In accordance with ASTM E797.

1018 carbon steel, LY12/6063/7075 aluminum,304 stainless steel


Thickness step block 1-10mm 5 steps 20*20 C/S
Thickness step block 2-10mm 5 steps 20*20 C/S
Thickness step block 2-20mm 5 steps 20*20 C/S
Thickness step block 5-25mm 5 steps 20*20 C/S
Thickness step block 1-8mm 8 steps 20*20 C/S
Thickness step block 1-10mm 10 steps 20*20 C/S
Thickness step block 2-10mm 10 steps 20*20 C/S
Thickness step block 2-20mm 10 steps 20*20 C/S
Thickness step block 1-10mm 5 steps 20*20 S/S
Thickness step block 2-10mm 5 steps 20*20 S/S
Thickness step block 2-20mm 5 steps 20*20 S/S
Thickness step block 5-25mm 5 steps 20*20 S/S
Thickness step block 1-8mm 8 steps 20*20 S/S
Thickness step block 1-10mm 10 steps 20*20 S/S
Thickness step block 2-10mm 10 steps 20*20 S/S
Thickness step block 2-20mm 10 steps 20*20 S/S
Thickness step block 1-10mm 10 steps 20*20 Titanium TC4



Parameters

Dimensions:80mm*20mm*25mm

Engineering plastics storage cases

Net weight: 0.2kg

Gross weight: about 0.6kg
