Product Details:
|
| Product Name: | Handheld PMI AlloyAnalyzer | Model: | HXRF-141JP |
|---|---|---|---|
| Detector: | High Performance Si-pin Detection Component | Element Detection Range: | 25 Elements |
| Detection Object: | Solid | Power: | Rechargeable Lithium Battery |
| High Light: | handheld xrf pmi gun,plating thickness measurement xrf pmi gun,non destructive handheld xrf alloy analyzer |
||

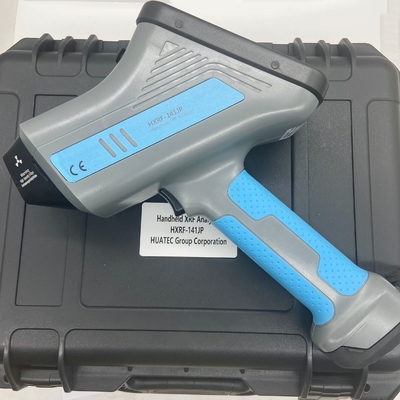

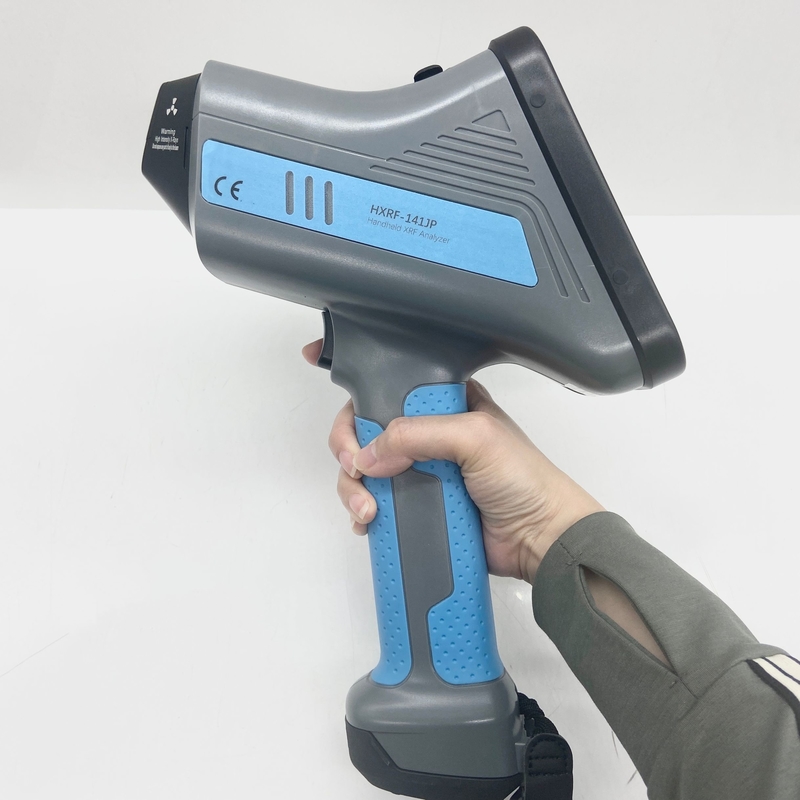

Handheld PMI AlloyAnalyzer gun and with camera Plating Thickness Measurement
Features
1. Small, light and easy to carry, analyzer automatically power on when install with battery.
2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis, built-in 5 megapixel high-definition camera.
3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
4. Indicator alarm lights flash for safety purposes during measurement, green light is on while waiting time, red light is on while testing.

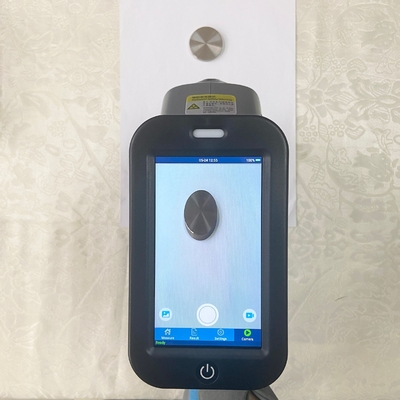

5. Big Industrial resistive touch screen 5inch, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are operating machine in some particular environment.
6. HXRF-141JP utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.
7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, HXRF-141JP has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration.
9. HXRF-141JP adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%.

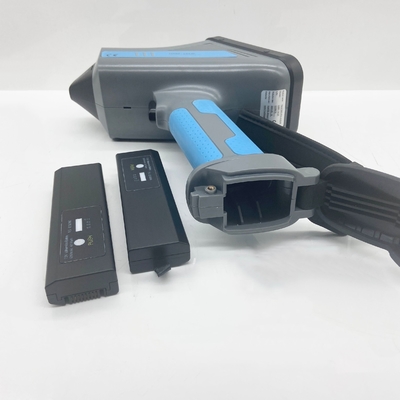

10. HXRF-141JP is supportive to battery hot plug, hence battery can be replaced without powering off the machine.
11. On HXRF-141JP, users can download the reports by test results and others (such as product description, origin of products and batch number).
12. HXRF-141JP is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature.
13. HXRF-141JP can be configured and maintained in a remote way via Internet.
14. HXRF-141JP's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
15. IP65 protective design
16. Data processing and enterprise resource planning (ERP) WIFI, wireless Bluetooth and other methods are used for data transmission. Files can be sent by E-mail, Bluetooth synchronous transmission and software synchronous transmission.
17. HXRF-141JP shows element symbols in English. With high precision, high testing speed and comparable results to even that of laboratory equipment, HXRF-141JP displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.
18.One-touch operation, HXRF-141JP test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.
19. Built-in GPS can collect and record the geographical information of the test location in real time
20.Automatic intelligent energy calibration on startup without manual initialization calibration
21.Multi-level user management functions (multiple accounts can be created to ensure the corresponding user numbers, convenient management and data tracing)
Technical parameters and specifications
| HXRF-140JP Handheld X-ray fluorescence alloy composition analyzer | ||
| Detector | High performance Si-pin detection component | |
| Excitation source | 45KV/200uA-Integrated Micro X-ray Tube and High Voltage Source with Silver/Tungsten Target End Windows | |
| Element detection range |
PMI mode:Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi, total 25 elements. Plating mode: copper silver plating, copper tin plating, etc |
|
| Detection object | solid | |
| Analytical methods | Direct reading analysis method+basic parameter method(FP) | |
| Software | Remote control systems, both Windows based PC and Android based mobile devices, can operate instruments through software to achieve data synchronization across multiple platforms (instrument, PC, mobile, cloud). The software has functions such as data analysis, spectrum display, report printing, and the instrument client has the ability to send analysis reports through email； | |
| Size | 245mm(L)X91mm(W)X319mm(H) | |
| Weight | ≤1.75KG(Including battery) | |
| Microcomputer display system |
1. Semi transparent and semi reflective industrial grade customized touch screen ≥ 5 inches 2. Resolution 1080 * 720 |
|
| Source |
1. Rechargeable lithium battery, standard configuration 6800mAh, voltage: 7.2V; Sustainable work for up to 12 hours; 2. The instrument has a built-in battery level display; |
|
| Charging mode | 1,Universal adapter charging power supply | |
| Collimator, filter |
1. Special radiation resistant material collimator, inner diameter 3MM 2. No filter, saves switching time, and software deducts background interference |
|
| Front end testing window | *≤9mm*5mmWaist shaped window | |
| Camera | Equipped with a built-in 5 megapixel high-definition camera function, it can take photos of the tested object for easy management | |
| Test report sending method | E-mail Send, Bluetooth synchronous transmission, software synchronous transmission | |
| Data transmission method | Wifi,Bluetooth | |
| Maintenance method | Remote software upgrade and diagnosis, on-site maintenance, diagnosis | |
| User management | Multi level user management function (can create multiple accounts, achieve corresponding person numbers, facilitate management and data traceability) | |
| Protective cover | The instrument is equipped with a protective cover, which has radiation and damage protection functions (not standard) | |
| Material sensing and instrument status prompt |
1. The body has a material sensing function, which can intelligently identify whether there is a test object in front of it. 2. Intelligent status display light, which displays three working states through the intelligent status display light (red flashing indicates being detected, green flashing indicates there is no object to be tested in front, and green long light indicates that there is an object to be tested in front) |
|
| Operating environment temperature and humidity |
humidity≤90% -20℃ - +60℃ |
|
| Safety |
*1. Instrument side measurement value ≤ 0.2 μ Sv/h (after deducting background) Note: The supplier must provide a copy of the "Handheld X-ray Analyzer (Leakage) Report" issued by a nationally authorized legal metrology institution or a national level testing center in the response document as evidence. 2. Multiple safety protection, no radiation testing; 3. The radiation level during work is much lower than international safety standards, and it has the function of sample free aerial testing and automatic shutdown of X-ray tubes. |
|
| Appendix |

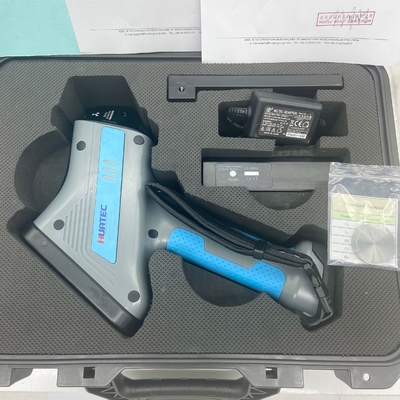

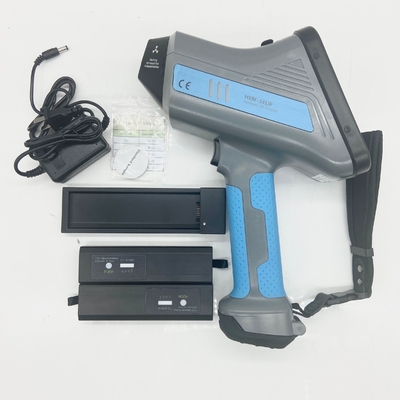

Standard configuration: 1. The three defense military protective box has waterproof, dustproof, and shock-absorbing functions *1 2. Rechargeable lithium battery * 2 3. Universal battery charging adapter * 1 4. English manual *1 5. Calibration certificate *1 6. Standard calibration block *1 Optional accessories: base mounted test stand, protective cover |
|
