Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector
Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector

Large Image :  Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE,Gost
Model Number: HCDX-Y45 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 sets per month

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector

Description
Product Name: Magnetic Particle Testers Model: HCDX-Y45 Series
Uv Lamp Intensity: ≥5000uw/cm² White Lamp Intensity:: ≥1450Lux
High Light:

portable magnetic particle testing equipment

,

ac dc magnetic particle testing equipment

,

yoke flaw detector mpi testing machine

Magnetic Particle Testers & Flaw Detectors Portable AC&DC Magnetic Yoke Flaw Detector





HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light

HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light

HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light



1. Product introduction

• The probe can choose two lighting modes: ultraviolet lamp and white lamp.

• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.

• Working mode: AC and DC (for model HCDX-Y45DC)

• AC operation: The probe is connected to AC220V power supply for flaw detection.

• DC operation: The probe can be connected to the battery for DC operation.



2. Technical parameters

• Sensitivity: A1 15/100 standard test piece; Clear display of defect

• Power supply:

HCDX-Y45: AC220V

HCDX-Y45DC: AC220V and DC12V

HCDX-Y45Z: AC220V

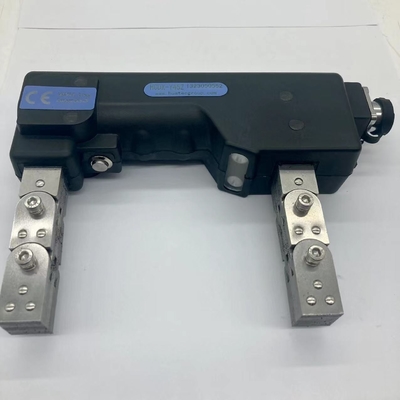

• Probe pole distance: 40mm-200mm

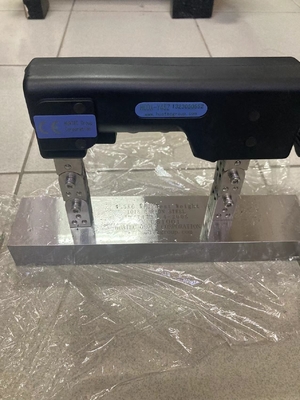

• Lifting force: AC≥45N DC≥177N

• Illumination of white lamp: ≥1450Lux (only when connected to AC)

• UV lamp intensity: ≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function)

• Machine size: 210mm (length) *48mm (width) *150mm (height)

• Yoke weight: 2.0 kg

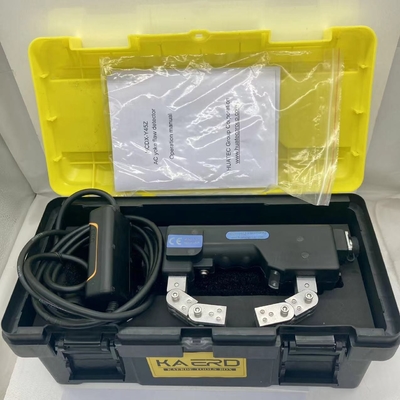

3. Configuration

HCDX-Y45 configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Y45DC configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Power adapter 1 pc

• Lead acid battery 1 pc

• DC power cable 1 pc

• Battery pack 1pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Y45Z configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

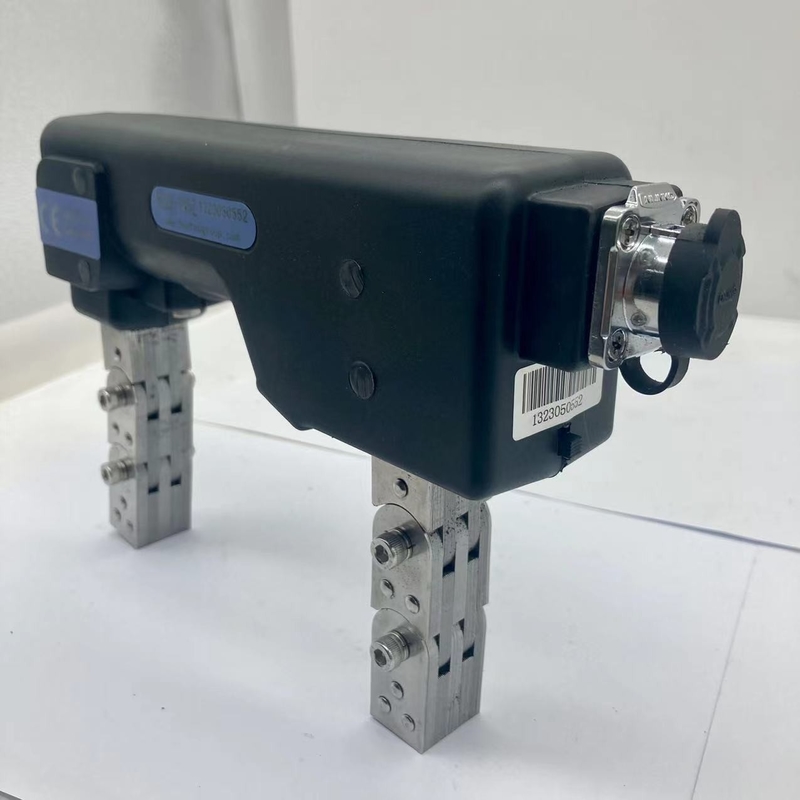

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector 0

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector 1

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector 2

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector 3

Portable Ac Dc Magnetic Particle Testing Equipment Yoke Flaw Detector 4
