Product Details:
|
| Product Name: | Ultrasonic Thickness Measurement | Model: | TG-3230 |
|---|---|---|---|
| Measuring Accuracy: | ±0.005mm Or 0.0002 Inch | Display Resolution: | Mm : 0.1 / 0.01 / 0.001 |
| Display LCD: | 42×57mm LCD Size | Power Source: | 2 Pcs. 1.5v AA Size Batteries |
| High Light: | high precision ultrasonic thickness gauge,nondestructive testing ultrasonic thickness gauge,china non destructive testing equipment |
||
HIGH PRECISION ULTRASONIC THICKNESS GAUGE Ultrasonic Thickness Measurement
TECHNICAL SPECIFICATIONS
* High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
* Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
* Display Units:Imperlal And Metric
* Automatic Self Calibration
* Couplant Indicator
* Automatic Power Off Device
* High-Low Limit Alarm
* Lcd Brightness Adjust
* Low Battery Indictor
| Measuring Range (for steel) | Interface-Echo Mode: (I-E or Standard Model) |
1.50mm-20.0mm (0.059in -0.787 in) |
| Echo-Echo Mode: (E-E or High Precision Mode) |
0.15mm-10.0mm (0.006in - 0.394in) |
|
| Measuring Accuracy | ±0.005mm or 0.0002 inch (if thickness < 3mm) | |
| ±0.05mm or 0.002 inch (if thickness < 20mm) | ||
| Display Resolution | mm:0.1/0.01/0.001 | |
| inch:0.01 /0.001/0.0001 | ||
| Sound Velocity Range | 1000 to 9999 m/sec (0.0394 -0.3936 inch/ms) | |
| Measuring Refresh Frequency | 4Hz in normal mode, up to 25Hz | |
| Memory Capacity | 500 test values | |
| Multiple Calibrations | One point or Two Point | |
| Display LCD | 42×57mm LCD size with El backlight and adjustable contrast, font size up to 13.75mm (0.54 inch) | |
| Power Source | 2 pcs. 1.5v AA size batteries | |
| Continuous working period | About 200 hours (with backlight off) | |
| Power off | Auto power off if idle for 4 minutes | |
| Operating Temperature | -10 "Cto +50 °C | |
| Unit Size | 2.9 Wx5.9 Hx1.26 D inches (73 Wx 149 Hx32 D mm). | |
| Weight | 200g | |
STANDARD DELIVERY

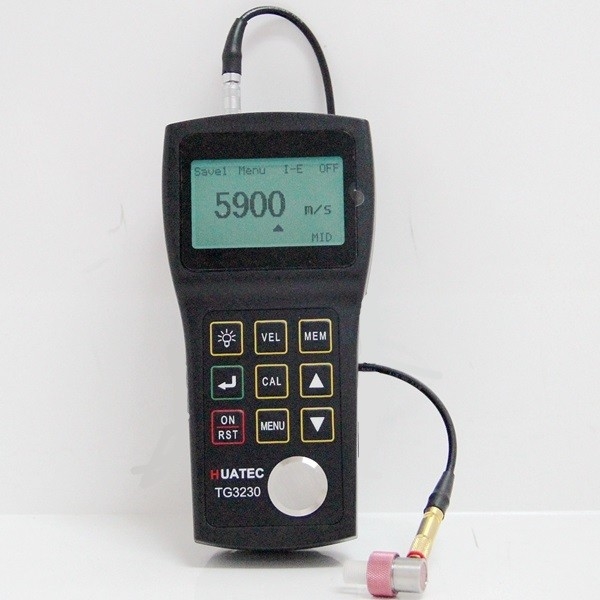

1. Ultrasonic Thickness Gauge TG-3230 Main unit with Calibration block (4.00 mm)
2. Precision Probe (D11R) with Replaceable Delay Tip
3. Coupling Paste
4. Operation Manual
5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)

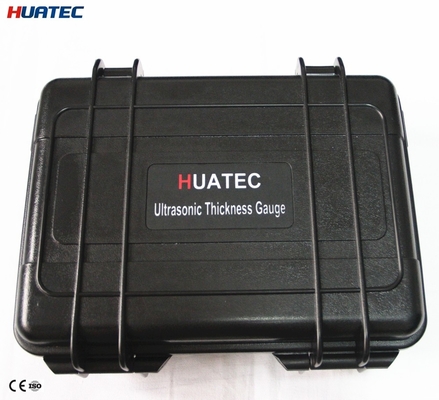

6. Carrying Case
