Portable Durable Abs Shell Spark Detector Intelligent High Voltage Electric

Portable Durable ABS shell Intelligent Variable Frequency High Voltage Electric Spark detector

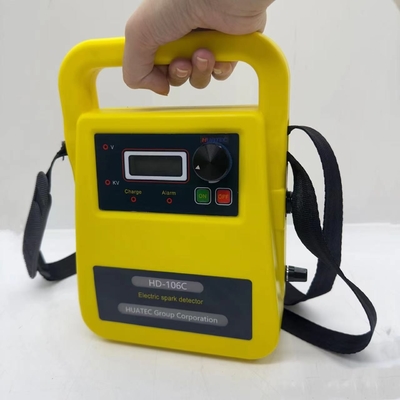

This series of products uses intelligent variable frequency high voltage detection technology to detect pinholes, cracks and other damage and defects in non-conductive coatings on conductive substrates (such as metals), and can be used to detect the quality of insulating anti-corrosion coatings on surfaces such as storage tanks, valves and pipes. The host is a portable, durable ABS shell. The instrument has advanced appearance design, stable and reliable performance, and can be widely used in anti-corrosion engineering, plastic closed joint detection, concrete coating air tightness test, petrochemical pipeline anti-corrosion detection, enamel production detection and other industries. It is an essential tool for testing the quality of insulation anti-corrosion coating on metal surface.

1. Technical parameter

• Detection voltage:0.5KV – 7.0KV (Type A) 6.0KV –35.0KV(Type B) 0.5-35KV(Type C)
• Coating thickness:0.03mm - 1.7mm (Type A) 1.4mm - 11.3mm(Type B) 0.03 mm -11.3 mm(Type C)
• Resolution: ±100V
• Service temperature: -20℃ ～+50℃
• Working humidity: avoid condensation on surfaces(refer DIN55670)
• Alarm signal: 86dB. frequency1500HZ. 1 second alarm for each pinhole
• Voltage display: LCD display, 3 digits
• Power supply: 12V Lithium battery pack (light weight, energy saving and environmental protection)
• Working hours: P7 (16 hours) P35 (12 hours)
• Power supply mode: Both AC and DC
• Recharger:110V~230V 50HZ and 60HZ automatic conversion
• Main engine weight:1.2 KG
• Main engine size: 180mm×235mm×80mm

2. Peculiarity

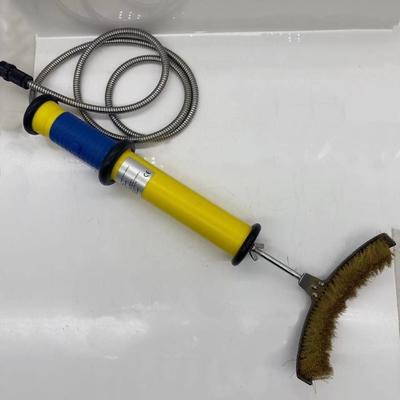

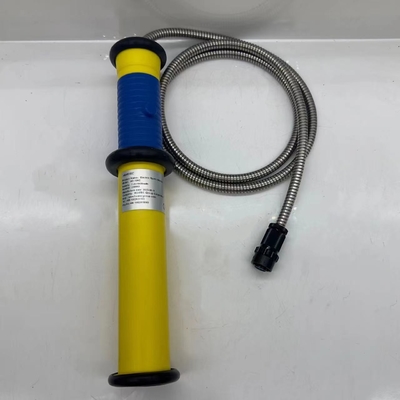

• Special metal hose protects the connecting cable between the host and the high voltage generator;
• Military-grade gold-plated connector ensures the reliability of the connection；
• Unique appearance design, ABS case, beautiful, durable；
• Light touch waterproof film keyboard, easy to operate；
• AC and DC power supply can be quickly and automatically switched, AC and DC dual use；
• Large capacity lithium-ion battery pack, energy saving and environmental protection；
• Independent high pressure button, maximum protection of the safety of inspection personnel, in line with international safety standards；
• The intelligent frequency conversion high voltage detection technology is suitable for use in humid environments, and no static electricity is generated during the detection process；
• It can detect surfaces that are wet with dew or stained with sludge and that are slightly conductive；
• Can automatically identify different working probes (high pressure guns), self-calibration；
• Digital display of battery voltage and output high voltage；
• Sound and light alarm when pinhole and other defects are detected；
• The output high pressure can be accurately adjusted, and the display accuracy is high;
• With overload protection function.
