Product Details:
|
| Display Range: | 0~2000（Gu） | Display Error: | 0-199<2 Gu，200-2000<1% Gs |
|---|---|---|---|
| Stability: | <2 Gu/30min | Angle: | 20°, 60°，85° |
| Measurement Spot: | 16×48（mm）ellipse | Dimension: | 138×36×82 （mm） |
| Power Supply: | 4.8V （Rechargeable Battery Inside） | ||
| High Light: | non destructive testing gloss meter measurements,4.8V gloss meter measurements |
||

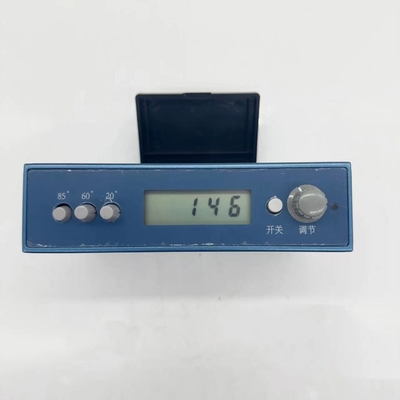

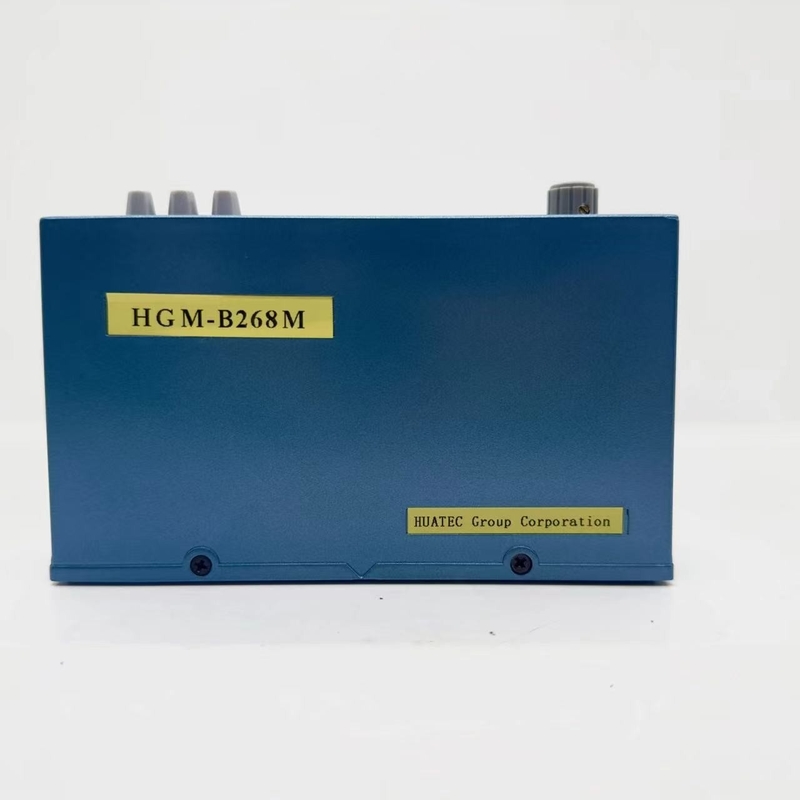

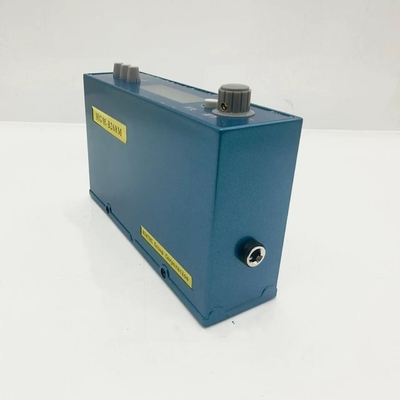

HGM-B268M Metal Mirror Surface and Coating Three Angle Surface Gloss Meter
HGM-B268M. The gloss meter executive the ISO-2813,ISO-7668,GB8807 standard which is the high accuracy, the miniaturized gloss meter. Test with three angles of 20,60 and 85 degree of angle.
HUATEC Gloss meter Reference angle for different application
| Angle | Point of reference for (foreign) (China) |
Application
|
|
20° |
DIN-67530 ISO-2813 GB9754 ASTM-D523 ASTM-D2457 GB8807 |
high gloss paint, ink, plastic. |
|
20° |
ASTM-D1834 TAPPI-T653 GB8941.1 |
high gloss stencil, cast coated paper. |
|
45° |
ISO-2767 GB8941-2 | surface of aluminum and aluminum oxide. |
| 45° |
ASTM-C346 GB/T3295 ASTM-D2457 GB8807 |
pottery, ceramic, plastic, plastic film, Stone |
| 45° | JIS-E8741 | pottery, ceramic, plastic, plastic film, Stone |
|
60° |
ISO-2813 GB9754 ASTM-C584 GB9966 ASTM-D523 DIN-67530 ASTM-D2457 GB8807 |
Mid-gloss paint, ink, plastics, ceramics, stone.
|
|
75° |
ISO-8254 TAPPI-T480 GB8941.3 |
copperplate paper |
| 85° |
ISO-2813 GB9754 DIN-67530 ASTM-D523 |
high gloss paint, ink, plastic. |
●All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
●Decorative materials, such as metal, marble, granite, polishing brick, ceramic tile and so on.
●The other kinds of materials and objects, such as plastic, woodenware, paper, etc.
3.Technical parameter
The technical parameters up to JJG 696 (First-level standard).
(1)display range of:0~2000(Gu)
(2)display error:0-199<2 Gu,200-2000<1% Gs
(3)angle: 20°, 60°,85°
(4)stability:<2 Gu/30min
(5)measurement spot:16×48(mm)ellipse
(6)dimension:138×36×82 (mm)
(7)power supply:4.8V (Rechargeable battery inside)
Features
1. Small and light, real easy to be carried and used.
2. 4.8V Rechargeable battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.
Instructions
Press the switch equipment in the measurement mode, the instrument on the sample, the value of the samples showed that the value of the gloss (Gs). When the measurement is greater than 2000Gu, showed that "OVER" the words.
When electric quantity insufficiency demonstrated that “bAtt” the inscription, this time should with the special-purpose charging source charge, the charging source plug insert promptly to the instrument side charge plug on, duration of charging about four hours. Charge standard “⊕”, when charge on the kneading board led is lightened.
When the power is low show "bAtt" words, at this time should be used in time-specific charge rechargeable power supply, rechargeable power supply plug into sockets on the equipment side of the charge, charge time in about four hours. Charging standard "⊕", led the charge when the panels were lit.
Calibration
When the standard equipment on board and show that numerical standards board is greater than the difference between the nominal value of 1.2 gloss units, the following methods should be calibrated
Measuring instruments on the window and down the board, press the "home / home zero" key, show value for the 0.0 at this time.
A black glass plate instead of the standard black-velvet panels, measuring instruments on the window, rather than pressing the "calibration / measurement of" key, set to enter the state, showed that at this time, "000.0" and the first "0" flashes. Rather than pressing the "shift" key-flashing shifted to right, rather than pressing the "home / home zero" key "flicker" values change from 0-9-0, through pressed "shift" and "home / home zero" Made with numerical keys and display glass panels with a nominal value of the same standard, at this time rather than pressing the "calibration / measurement," the completion of key settings. Then white ceramic standard equipment on board, show value and the standard white ceramic plate with a nominal value of the error should not be greater than ± 1.2 gloss units, or else should be considered standard dirty plates. After the completion of the above-mentioned steps can be measured samples.
NOTE
Contents of this instrument 4 rechargeable batteries,
Package of instruments include:
Host a standard set of plates: black and white piece of the board, board zero a (standard on black velvet box), a manual, a certificate, a charger, an instrument box.
Standard Delivery
| Gloss meter | 1pc |
| Instrument case | 1pc |
| Standard board |
2pc A black board is used for the highlight calibration A white board is used for the low light calibration |
| Battery charger | 1pc |
| English instruction manual | 1pc |
| Calibration certificate | 1pc |
