Product Details:
|
| Accuracy: | ±(5%n+5d) | Operating: | Temperature:0~50℃(32~122°F) |
|---|---|---|---|
| Conditions: | Humidity:<80% RH | Power Supply: | 4x1.5V AAA(UM-4)Battery |
| High Light: | non destructive testing illumination lux meter,Integrated illumination lux meter |
||

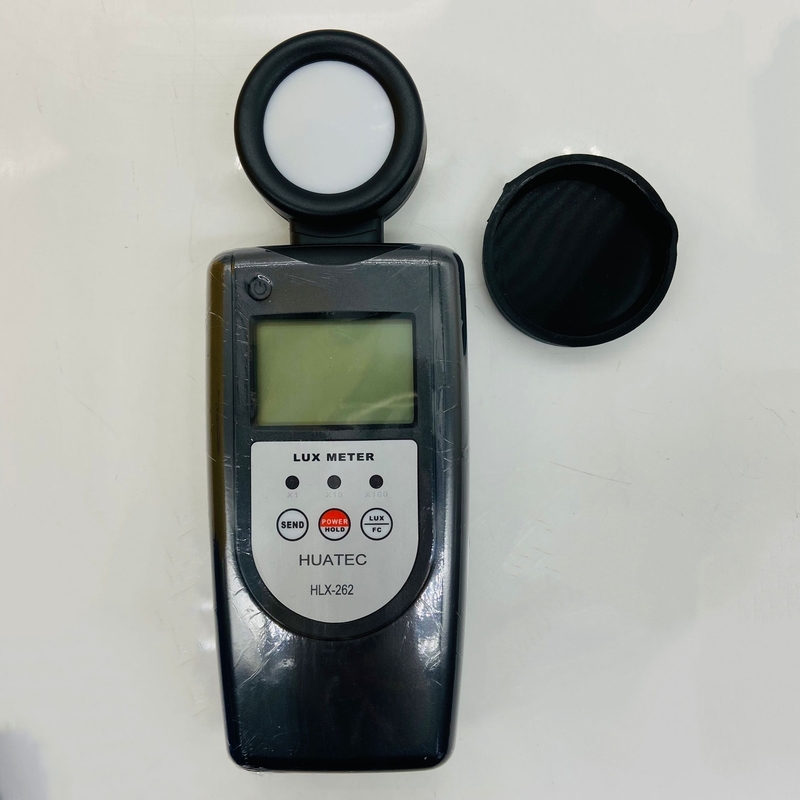

HLX-262 Integrated Illumination Lux Meter
Application
The Lux Meter is a specialized instrumentation measuring luminosity, brightness. Widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.
Specification
| Display | LCD | |
| x1 Grade | Range | 0~199 Lux |
| Resolution | 0.1 Lux | |
| Range | 200~1,999 Lux | |
| Resolution | 1 Lux | |
| x10 Grade | Range | 2,000~19,999 Lux |
| Resolution | 10 Lux | |
| x100 Grade | Range | 20,000~200,000 Lux |
| Resolution | 100 Lux | |
| Foot Candle | Range | 0~20,000 FC |
| Resolution | 1 FC | |
| Accuracy | ±(5%n+5d) | |
| Operating | Temperature:0~50℃(32~122°F) | |
| Conditions | Humidity:<80% RH | |
| Power Supply | 4x1.5V AAA(UM-4)Battery | |
| Dimensions | Main Unit | 140x72x34 mm |
| Sensor | Dimeter:50 mm | |
| Weight(Including Batteries) | 200g | |
| Standard Accessories | Main Unit | |
| Operation Manual | ||

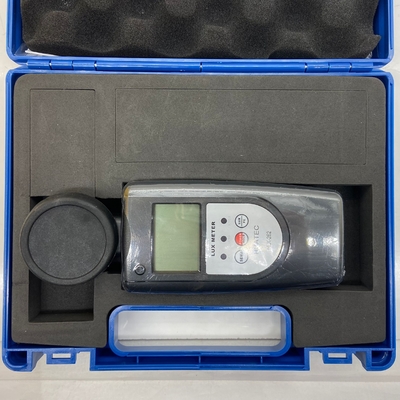

| Carrying Case(B04) | ||
| Optional Accessories | RS-232C Data with Software | |
| Blue tooth Data Adapter with Software | ||
Feature
* Multi-parameter measurement: Lux & FC.
* Digital display gives exact reading with no guessing or errors.
* Wide measuring range and high resolution.
* In build low battery indicator.
* Max value hold function.
* The use of durable, long lasting components, including a stronge, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortabley in either hand.
* Use USB/RS-232 data output to connect with PC.
* Provide Blue tooth data output choice.
