Product Details:
|
| Test Standard: | MIL-STD-6866、ASME E1417P & WA TAM146040 | Depth: | 106µm |
|---|---|---|---|
| Width: | 0.2~0.5µm | Practicable Tolerance: | +/-0.1mm |
| Material: | Stainless Steel | ||
| High Light: | psm 5,fluorescent penetration test block,five point penetration test block |
||

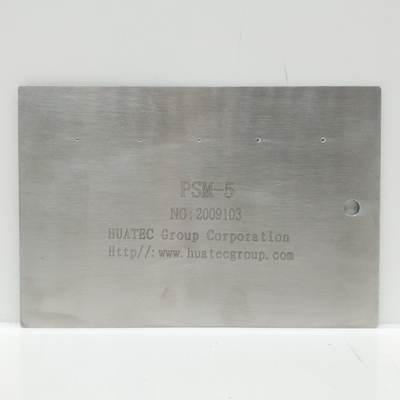

PSM-5 Five point Fluorescent Penetration Test Block

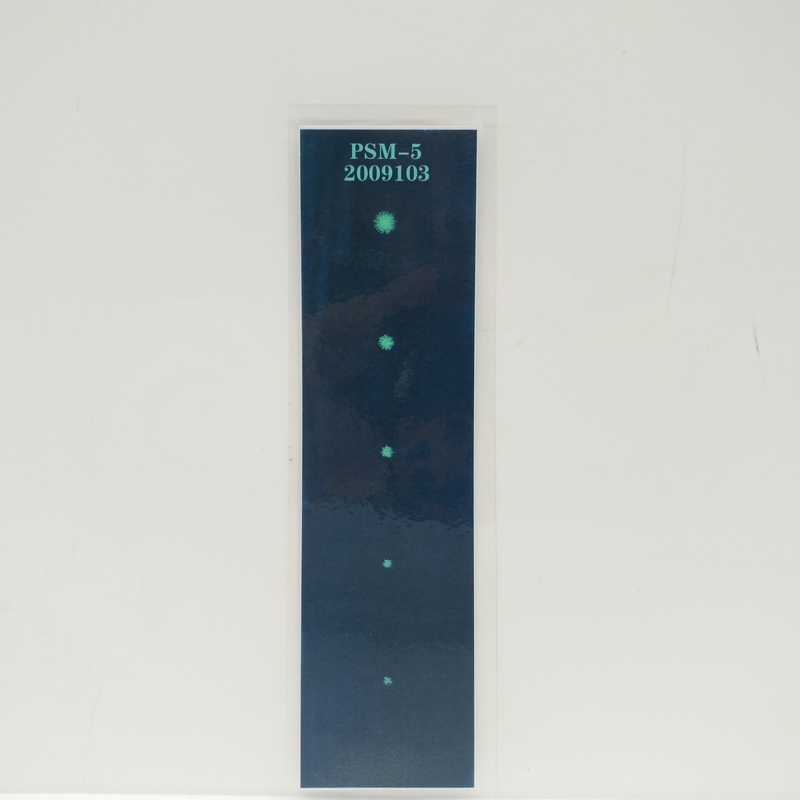

The five point test piece is used to verify the sensitivity of the penetrant and the accuracy of the operating process. At the same time, the test block has a rough surface in the sandblasting area, which is used to verify the cleaning performance of the penetrant and the accuracy of the cleaning method. Its sensitivity is determined by the number of defects displayed and the diameter of each point and its radial domain.
|
Specification |
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. |
| Material: | Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
| Depth | 106µm |
| Width | 0.2~0.5µm |
| Oxidizing property | In -55℃ ~ 200℃ - store between three years not metamorphism,no oxidation,colour and lustre is silver |
| TRACEABLITY | Calibration standards used are traceable to international standards |
