Product Details:
|
| Maximum Brightness: | 205000cd/m2 | Observable Blackness: | 5.0D |
|---|---|---|---|
| Light Source: | LED Light Source | Observation Screen Size: | 200*80mm |
| Uniformity Coefficient Of Observation Screen: | ≥95% | Light Source Life: | ≥10000 Hours |
| High Light: | led observation view lamp,industrial film observation view lamp |
||

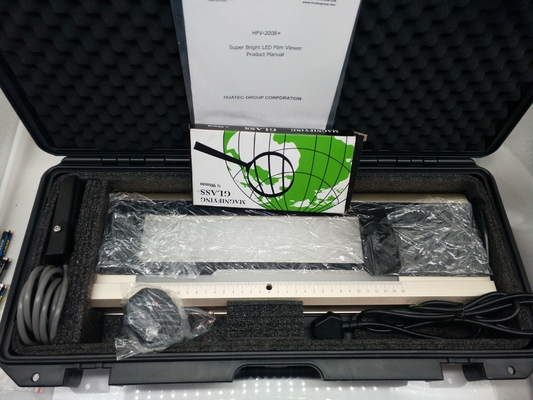

HFV-2008 LED Industrial Film Observation View Lamp
HFV-2008 de force LED industrial film observation lamp is a new product developed by the latest standard for JB/T4730-2005 "non destructive testing of pressure equipment" and GB/T 19802-2005 "industrial radiographic negative film lamp". The imported ultra high power LED (SMD) was used as the light source of the viewing lamp. The tiny defects on the 5.0D blackening film can be clearly observed. In the foot switch mode, continuous work for 12 hours, photographic film does not curl.
Technical parameters:
| Model | HFV-2008 |
| Maximum brightness | 205000cd/m2 |
| light source | LED light source |
| Observable blackness | 5.0D |
| Dimming mode | Nonpolar continuous dimming |
| Light source life | ≥10000 hours |
| Color temperature | 9000K above, Blue ray, can reduce eye fatigue |
| Light | Two choices of foot control and manual switch |
| Observation screen size | 200*80mm |
| Uniformity coefficient of observation screen | ≥95% |
| 12 hour surface temperature | ≤40℃ |
| power | 136W |
| weight | 5.4kg |

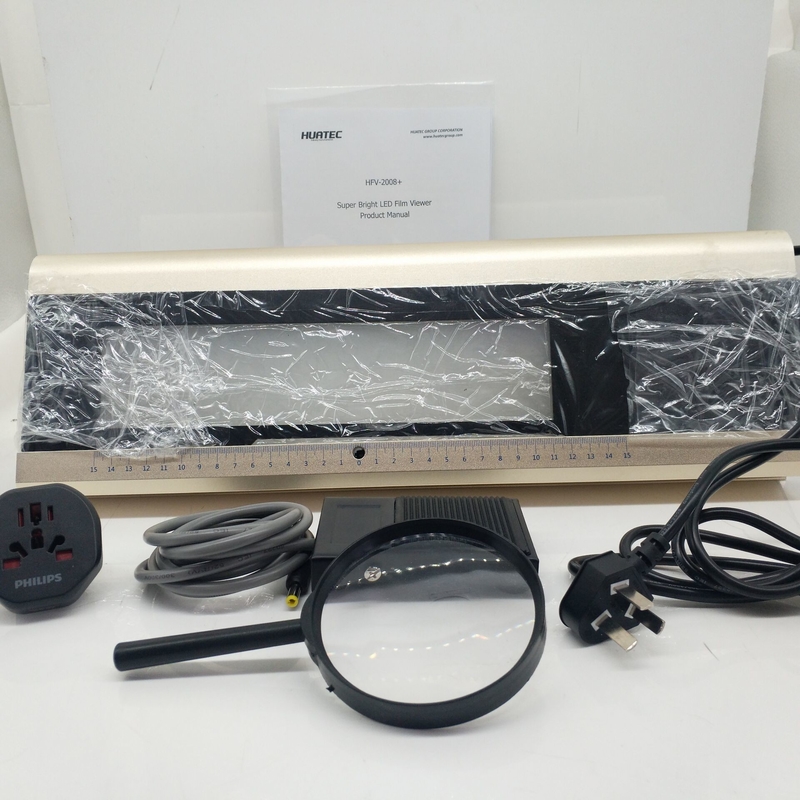

HFV-2008 LED industrial film observation lamp is designed for the constant current driving mode for the view lamp, which ensures the normal work of LED to a greater extent, thus achieving the purpose of prolonging the life. The stepless dimming of the low voltage electronic mode further ensures the safety of the users. A magnifying glass and a slide gauge, which are integrated with the cabinet, are conveniently attached to the cabinet, so as to facilitate the evaluation of the micro defect levels on the negatives.
