Product Details:
|
| Product Name: | Portable Vibration Analyzer Meter | Model: | HG-908B |
|---|---|---|---|
| Displacement: | 1~1999 M M (or 200 Mil) Eq. Peak-peak | Overall Accuracy: | ±5% |
| High Light: | explosion proof portable vibration analyzer,ex-6 portable vibration analyzer,explosion proof portable vibration meter |
||

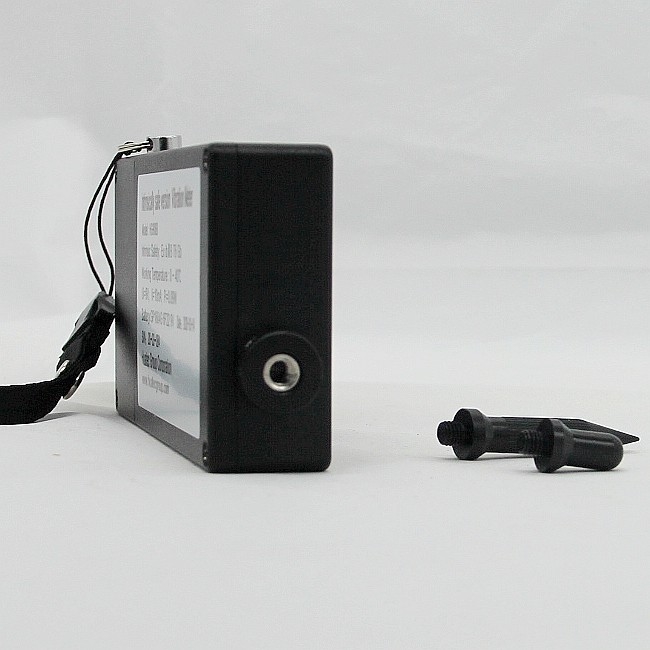

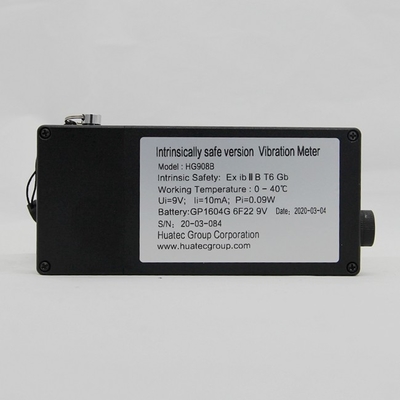

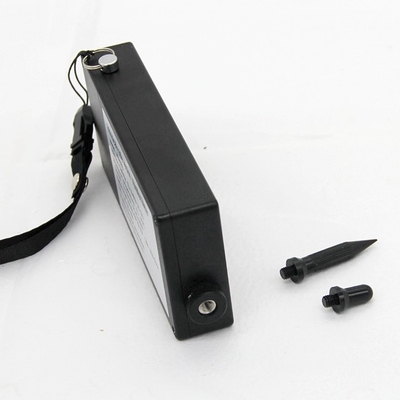

Explosion Proof EX-6 HG908B Portable Vibration Analyzer Meter
Features:
• Measuring vibration velocity, displacement, acceleration and high-frequency acceleration
• Small size, transducer included,battery powered, Accelerometer may be integrated or external cable connected.
• One button control both power and measurement. Very easy to use.
• 3 1/2 LCD digital display, sampling per second.
• Holding function.
• Automatic power off.
• True RMS measurement.
• Suitable for monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and etc.
Specifications:
Amplitude Ranges:
| Displacement | 1—1999 m m (or 200 mil) Eq. peak-peak |
| Velocity | 0.1—199.9 mm/s (or 20 in/s) true RMS |
| Acceleration | 0.1—199.9 m/s2 (or 20 g) Eq. Peak |
| High Frequency Acceleration | 0.1—199.9 m/s2 (or 20 g) Eq. Peak |
| Overall accuracy | ±5% |
| Temperature range |
0 - 50°C |
Frequency response:
Acceleration 10-1000Hz (908B)
10-5000Hz (908)
