Product Details:
|
| Product Name: | Magnaflux Electromagnetic Yoke | Model: | HCDX-Y2 |
|---|---|---|---|
| Power Supply: | 110V/220V/240V Single-phase AC Power Supply | Leg / Pole Span: | 0~220mm |
| High Light: | Portable ac electromagnetic yoke,ac electromagnetic yoke Portable,Magnaflux ac electromagnetic yoke |
||

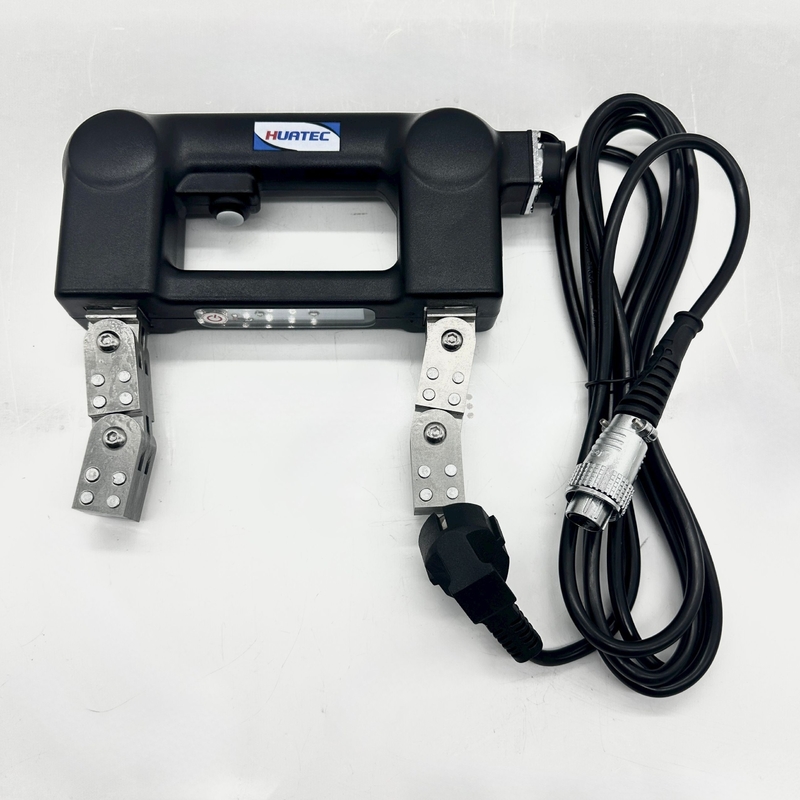

HCDX-Y2 AC Portable Magnaflux Electromagnetic Yoke
The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing. Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

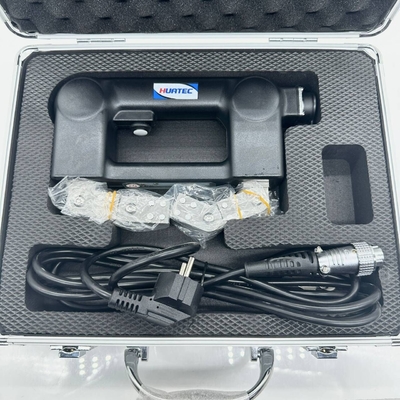

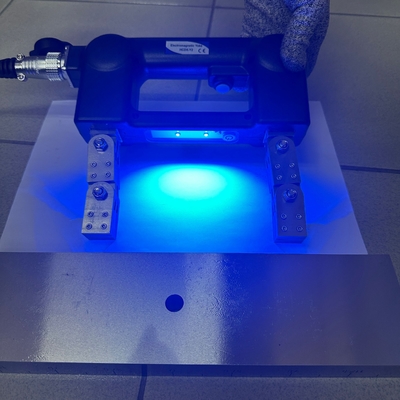

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
|
Model Items |
HCDX-Y2 | HCDX-Y7A | |
| Electrical Requirements | AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz | ||
| Waveform | AC | ||
| Tangential Field Strength | > 2kA/m at midpoint between legs / poles | ||
| Working temperature | -10～+40℃ | ||
| Duty Cycle | 50%, max on time is 90 seconds | ||
| Ingress Protection (IEC 60259) | IP54 | ||
| Relative humidity | <80% | ||
| Sensitivity | ASTM E1444-05,ASME 2007 page number V | ||
| DC power pack | X | ● | |
| AC working current | AC2.2A | ||
| DC working current | X | DC 1.5A | |
| Battery charging time | X | 3 hours | |
| Battery working time | X | 6h | |
| Leg / Pole Span | 0~220mm | ||
| Leg size | 22*22mm | ||
| Power cord length | 3M | ||
| Lifting Force | A C | ≥7.1kg (69N) | |
| D C | ≥22.2kg (216N) | ||
| Weight | Yoke | 2.3kg | |
| DC Battery | X | 0.6kg | |
