Product Details:
|
| Product Name: | Tasla Meter | Model: | HGS-10C |
|---|---|---|---|
| Range: | 0~200mT~2000mT | Sensitivity: | 0.01mT, 0.1mT |
| AC Magnet Field: | 50-200Hz | Power Supply: | Battery 9V, Constant DC Power |
| High Light: | DC AC Tasla Meter,DC AC digital gauss meter,Tasla digital gauss meter |
||
For Inspecting & Checking Flux Density DC And AC Both Tasla Meter Digital Gauss Meter
The Tasla meter is a special instrument used for inspecting & checking flux density ,which is also one of the most universally devices in the field of magnetic measurement.
Model HGS-10C digital Tasla meter is controlled by the SCM, which is suitable for handle operation.It can be used to measure DC or AC magnetic field and flux dencity.The device can be carried on one’s person. It is characterized by its wide measuring range,simple operation and clear display. It is still added with the function of maintenance such as holding Measure Value/Peak Value, As mT or Gs unit of display can be change over, Measuring range of 200mT or 2000mT can be chose, and others that as resetting zero by key and so on. The power is one piece of battery 9V. It can be used continually about 20 hours.
Reality Working Domain:
1.Magnetic field distribution of material surface
2. Working magnetic field produced fro some instrument that as iron-removing device,magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil
3. Leakage Magnetic iron-surface
Technical parameter:
| Range | 0~200mT~2000mT |
| Accuracy | ±2% |
| Sensitivity | 0.01mT, 0.1mT |
| AC Magnet Field | 50-200Hz |
| Temperature of environment | 5℃-40℃ |
| Relative humidity | 20%-80%(no condensation) |
| Power Supply | Battery 9V, constant DC power |
| Dimension | 150mm×70mm×30mm |
| Weight | N.W: 500g G.W:900g |
| Display | 4½ LCD |

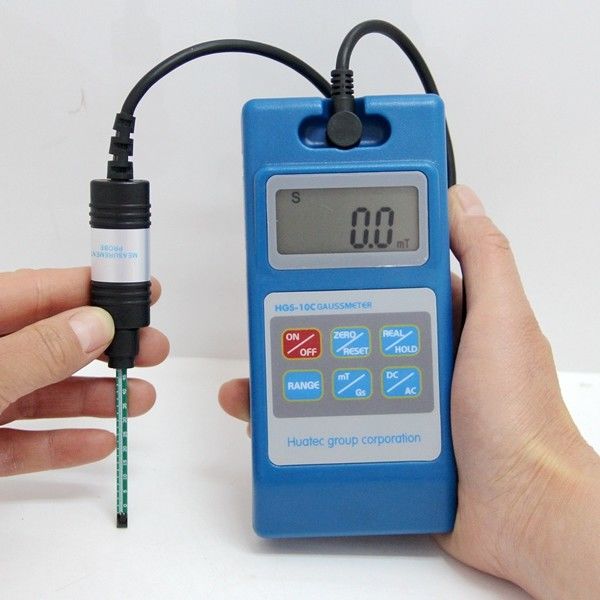

Shape of the device:

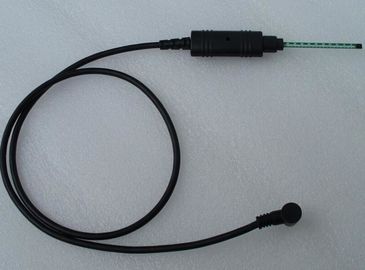

1. Sensor Connecting
2. LED Screen
3. Zero/Reset Reading
