Product Details:
|
| Product Name: | Film Viewer Machine | Model: | HFV-600C |
|---|---|---|---|
| Maximum Brightness: | 161,000Cd/ ㎡（ 500 000LUX | Display Screen Maximum Dimension: | 220X80mm |
| High Light: | Advanced led film viewer,LED Lighting led film viewer,Industry led film viewer |
||

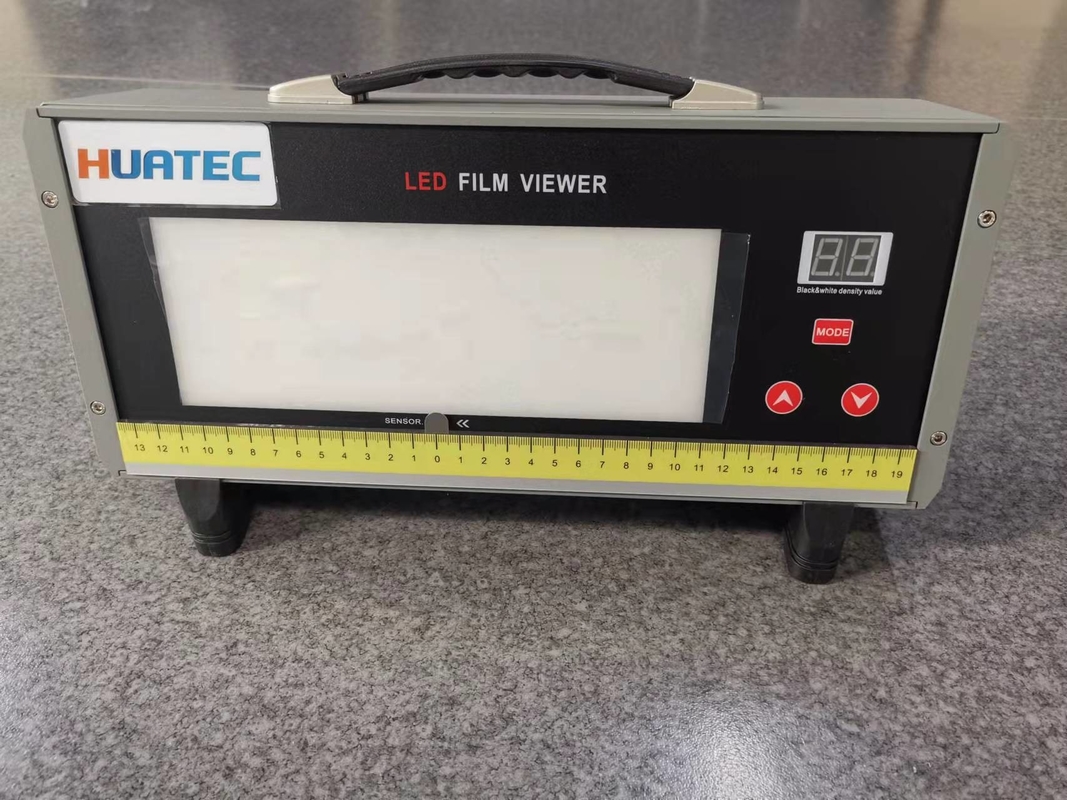

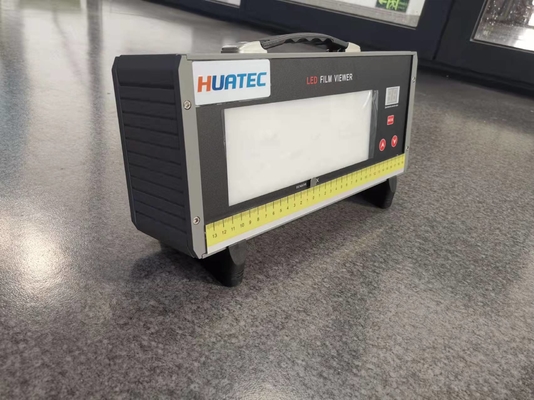

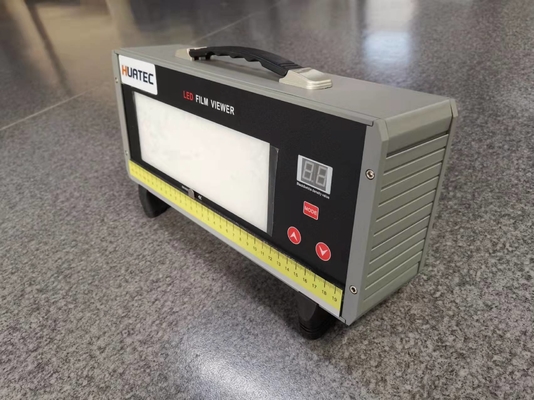

Advanced LED Lighting Industry LED Film Viewer Machine HFV-600C
The LED Industrial X-Ray Film Viewer HFV 600 C combines advantages of both domestic and foreign film
viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low lum inance, poor
contrast and short lifetime. It is developed absolutely according to the Norm of ISO 5580 Industrial radiographic
illuminators minimum requirements. Thanks to the portable, rugged and smart design, they are extremely
suitable for fieldwork. It will come to be your right hand man of you for sure.
With Super power LED(SMD ), special design of cooling fan, the HFV 600 C can detect the micro defects on the
film at 5.0 darkness. N o matter you use with foot switch mode or manual mode, the HFV 600 C can work 12 hours continuously without any film curly.
Features:
1.Light source: advanced LED lighting of face shape. High brightness value, low light failure, low power
dissipation, color temperature close to natural light..
2.Automatic adjustment by infrared inductor, omit foot switch .
3.PWM M of original control system could display the use data at any time and overall protect and remember
the record. (Memory the working mode and working brightness)
4.Light source , external 24V power adapter, and can use battery optional, m ore stabilization.
5.Unique cooling system design , low temperature long working life time .
6.Advanced visor of automatic positioning design, no need hand operation more .
7.All digital system control, simple and easy operation
8.Assemble advanced Retractable handle, more portable.
9.Display: high quality acrylic board high light transmission, durability and no n deformable non discoloring
| Model | Maximum Brightness | Observable film darkness |
magnifying lens |
| HFV-600A | 125,000cd/m2 (388 000Lux) | ≤4.5 | handheld |
| HFV-600C | 161,000Cd/ ㎡( 500 000LUX | ≤5.0 | handheld |
| HFV-600D | 125,000cd/m2 (388 000Lux) | ≤4.5 | removable on the machine body |
Specifications for HFV-600C:
1. Maximum Brightness:161,000Cd/ ㎡( 500 000LUX
2. Observable film darkness: 5 .0
3. Average color temperature: 6500K
4. Display screen maximum dimension: 220X80mm
5. Observation of surface average angle: 0.9
6. Power: exchange, input 100~ 240V output 24V 5A DC: 24V
7. Power consu mption: 120W
8. Appearance dimension: 360X95X195mm length width high
