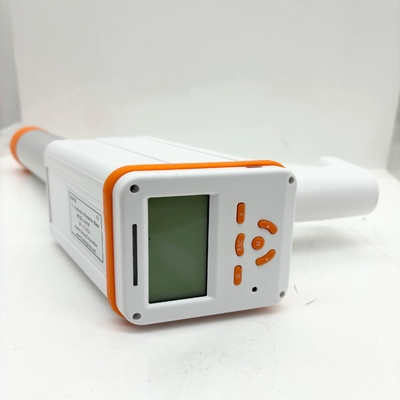

φ30×25mm NaI Detector Non Destructive Testing Equipment for Energy Range 40keV～3MeV

Feature

• High sensitivity, wide measuring range, good energy response
• High-speed low power consumption microprocessor
• Digital and gauge double display
• English interface display
• LCD digi display
• 20000 group data can be saved
• Dose rate and total doses can be measured
• With two levels of dose rate threshold alarm function .
• Battery Indicator

- Lightweight and ergonomic design of ABS and aluminum alloy shell.

-Protect the operation personnel of long design, standard 40 cm in length, the longest can choose extended to 100 cm.

- Waterproof seal protection case

- Optional USB communication function

- optional bluetooth printer, bluetooth or wifi data transmission.

- optional dual battery model (built-in lithium battery).

Technical data

• Detector:φ30×25mm,NaI
• Sensibility:1µSv/h≥350CPS
• Energy threshold value:35keV
• Measuring range:
• Dose rate:0.01～500.00µSv/h
• Accumulative dose:0.00µSv～99999µSv
• Energy range:40keV～3MeV
• Energy response:≤±30%(relative to¹³⁷Cs)
• Relative error:≤±10%
• Measurement time:1~250s programmable
• Alarm threshold:Programmable within range
• Display:

Dose rate :nSv/h,µSv/h,nGy/h,µGy/h

Accumulative dose:µSv

• Counting rate: CPS
• Power source:type C battery(Two batteries)
• Power:≤100mW(not contains backlighting power consumption)
• Weight:1.0kg(contain battery)
• Size: 40cm×20cm×7.5cm
