Product Details:
|
| Range: | 0~100HBa, Amount To 25~150HBW | Resolution: | 0.1HBa |
|---|---|---|---|
| Maximum Hold: | Yes | Power Supply: | 2 X 1.5 V AAA (UM-4) Battery |
| Weight: | 390g (Not Including Batteries) | Repeatability Error 1: | 81~88HBa ±1.5HBa |
| Repeatability Error 2: | 42~48HBa ±2.5HBa | MOQ: | 1PC |
| High Light: | Aluminum Hardness HBA-110,Aluminum Hardness Barcol Impressor,HBA-110 |
||

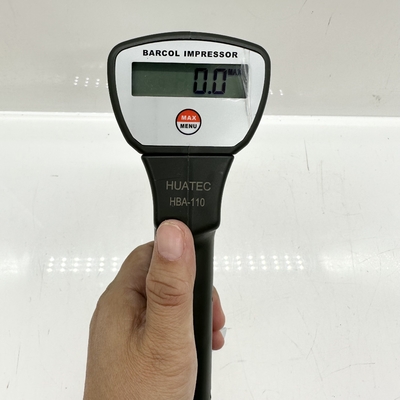

Barcol Impressor HBA-110 (Aluminum Hardness, Data Memory)
| Application | It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry. |
* A digital indentation hardness tester which is the latest design and development of our company.
* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.
* It is with good stability, convenient calibration, and high accuracy of detection.
* Small in size, portable. single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.
* Wide test range can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.
* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.
* With the maximum hold function, recording the maximum hardness value during measurements.
* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
* Provide Bluetooth data output choice.
Specifications
| Model | HBA-110 |
| Range | 0~100HBa, Amount to 25~150HBW |
| Resolution | 0.1HBa |
| Indication Error | 81~88HBa ±1HBa |
| 42~48HBa ±2Hba | |
| Repeatability Error | 81~88HBa ±1.5HBa |
| 42~48HBa ±2.5HBa | |
| Maximum Hold | √ |
| Operating Condition | Temperature: 0~50°C |
| Humidity: <80%RH | |
| Power Supply | 2 x 1.5 V AAA (UM-4) Battery |
| Weight | 390g (Not Including Batteries) |

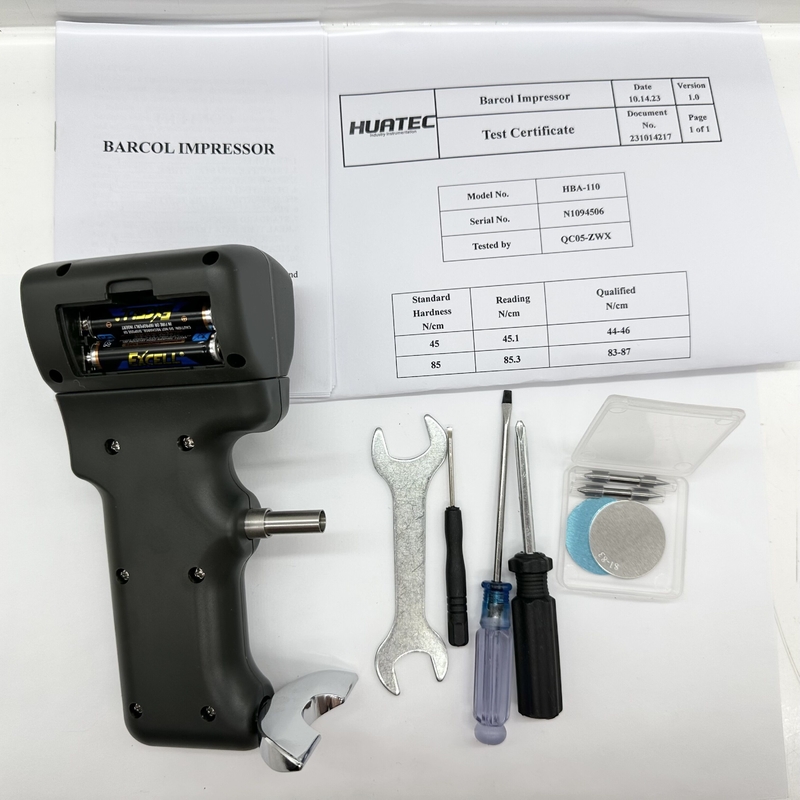

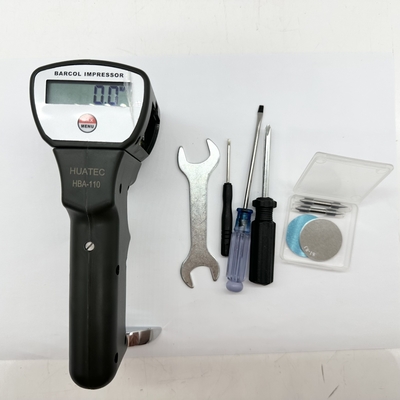

Standard Accessories :
1. Main Unit HBA-110
2. 2 Pins
3. 2 Standard Blocks
4. Pin Length Calibration Block
5. Screw Driver
6. Spanner

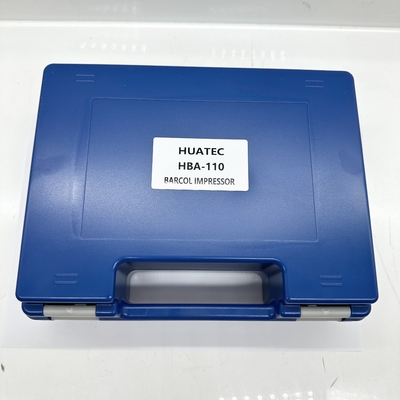

7. Carrying Case
8. Operation Manual
Optional Accessories:
Bluetooth data output with software
