Product Details:
|
| Product Name: | Ultrasonic Flaw Detector | Range Of Scanning (mm): | 0～1000 |
|---|---|---|---|
| Frequency Range (MHz): | 0.5~10 | Data Save: | 500 A-Scan Images |
| High Light: | Large Screen Ultrasonic Flaw Detector,Li Battery Ultrasonic Flaw Detector,USMGO Ultrasonic Flaw Detector |
||

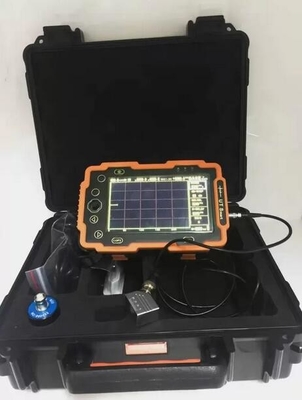

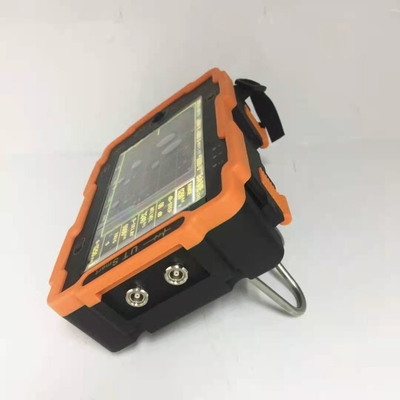

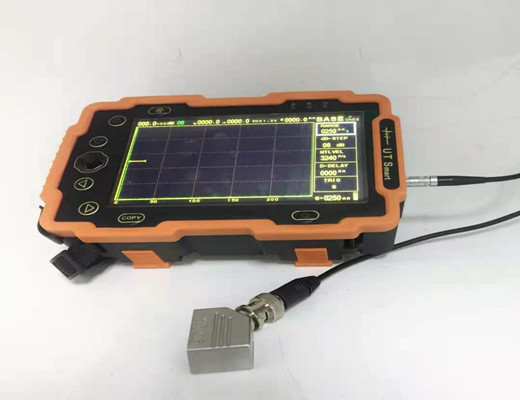

Large Screen Li battery USMGO Ultrasonic Flaw Detector (UT)
Standard Configuration
|
Designation |
Quantity |
|---|---|
| Main unit | 1 |
| 4.2V power adaptor | 1 |
| probe connecting cable | 1 |
| Carrying case | 1 |
| Instruction manual | 1 |
| Straight probe | 1 (Dia 20mm, 2.5MHz) |
| Angle probe | 1 (13×13, 60°, 2.5MHz) |
Options
|
Designation |
Quantity |
|---|---|
| Communication software for PC | 1 set |
| Other probes | Straight/ Angle/ Dual types for option |
Measuring Range and Specification
Range of scanning: 0 mm ~1000 mm
Resolution for scanning: 1mm
Range of gain: 0dB ~110 dB
D-Delay: 0µs～5000µs
Sound speed : 1000 m/s～9999m/s
Operation Environment
Temperature: -20℃~50℃
Humidity: 20%～90%RH
Free of strong magnetic field and corrosion
| Item | Technical Data |
| Range of scanning (mm) | Range of scanning (mm):0～1000 |
| D-delay (ms) | D-delay (ms):0～5000 |
| MTLVEL(m/s) | MTLVEL:1000～9999 |
| Working mode | Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
| Frequency Range (MHz) | 0.5~10 |
| Gain adjustment (dB) | 0～110 |
| Reject | 0%～80% of screen height |
| Vertical linear error | Vertical linear error is not more than 3% |
| Horizontal linear error | Not more than 0.1% in the scanning range |
| Sensitivity Leavings | ≥50 dB |
| Dynamic range | ≥36dB |
| Alarm | Three modes, i.e. forbidden wave, loss wave and auto |
| A-Scan display area |
Full screen or local A-Scan display freezing and de-freezing A-Scan filling |
| Data save | 500 A-Scan images (including setting of instrument) |
| Standard communication interface with PC | USB |
| Measuring unit | mm/inch |
| Battery | Li battery 3.6V 3000mAh * 4 |
| Power adaptor | 4.2V DC 220AC |
| Working temperature | -20℃～50℃ |
| Working humidity | 20%～90% |
| Port type | LEMO |
| Overall dimension (mm) | 162×105×42 |
| Weight (kg) | 0.68 (include Li-ion battery) |
