High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB

High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB
High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB

Large Image :  High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: FD550
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 3000-4000USD
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: TT or Paypal, Western Union
Supply Ability: 200 sets per month

High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB

Description
Curve: DAC、AVG、TCG、B Scan、AWS Gain: 0-130dB
Calibration: Automated Calibration、Automated Gain Memory: Big Memory Of 1000 A Graph
Battery: Li Battery, Continue Working Time Up To 12 Hours
High Light:

digital ultrasonic flaw detector

,

portable ultrasonic flaw detector

High - speed Solid Metal Housing Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB


Features:
Automated calibration,Automated gain, 0-130dB gain
DAC,AVG,TCG,B scan,AWS
High-speed capture and very low noise
Solid metal housing,water / oil proof,dust proof
High contrast viewing of the waveform from bright

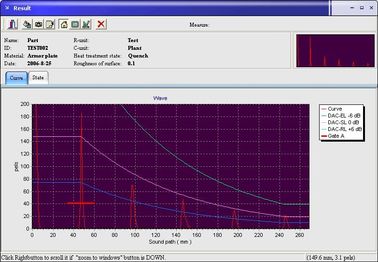

Powerful pc software and reports can be export to excel

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
Automated switch three staff gauge ((Depth d,level  p,distance s);
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
6dB DAC functions;
500 independence setup, any criterion can be input freely, we can work in the scene without test block;
Big memory of 1000 A graph
Automated gain and gain scan;
Peak Hold and Peak Memory;
B scan;
AWS D1.1
Automated make video of test process and play; use upan,the length of video is unlimited.
Powerful pc software and reports can be export to excel;
Li battery, continue working time up to 12 hours;
The embeded software can be online updated;

Other assistant function
Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar ;
Two gates setting and alarm indication;
Gate and DAC alarm;



Specifications

Title

Parameter

Title

Parameter

Measuring Range(mm)

0 ~  10000

Measurement Mode

Single,Dual,Thru

Vertical Linearity Error

≤3%

Reject

0~80%

Horizontal Linearity Error

≤0.1%

Pulse Displacement(μs)

-20 ~  +3400

Sensitivity Leavings

≥62dB

Zero(μs)

0.0 ~  99.99

Dynamic range

≥32dB

Port Type

BNC(Q9)

Resolving Power

≥36dB

Operating Temperature  (℃)

-20~50

Frequency Range(MHz)

0.5 ~  20

H×W×D(mm)

240×156×48

Gain(dB)

0 ~  130

Weight(kg)

1.0(with battery)

Material Velocity(m/s)

1000 ~  15000







Standard Delivery:

Digital Ultrasonic Flaw Detector Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Probe connection cable (BNC to Lemo 01)
Instruction manual
Carrying case

Additional Accessories:
Data managing software  for digital ultrasonic flaw detector
Data managing cables RS232  for digtial ultrasonic flaw detector
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 01)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case

High - speed Digital Ultrasonic Flaw Detector FD550 with Automated Gain 0dB - 130dB 0



Model guide:

Title

FD510

FD520

FD550

Measuring Range

0-6000mm

0-10000mm

0-10000mm

Material Velocity(m/s)

1000-15000

1000-15000

1000-15000

Gain(dB)

110dB

120dB

130dB

Frequency Range(MHz)

0.5-15M

0.5-15M

0.5-20M

Memory

500

1000

1000

independence setup

100

500

500

sz dB,ф

Peak Hold and Peak Memory

B scan

X

DAC

AVG

TCG

X

STANDARD(13 countries standard in-built)

Automated calibration( IIW )

Automated calibration(two hole )

X

X

6dB DAC

X

make video

unlimited

unlimited

pc software

updated online

curved surface correction

AWS

Pulse energy

Pulse width

Gate alarm

DAC alarm

continue working time

9 hours

12 hours

12 hours

Port Type

BNC

BNC

BNC

Overall dimension (mm)

238×160×48

238×160×48

238×160×48

Weight (kg)

1.0

1.0

1.0
