Product Details:
|
Working Temperature: | -20℃~40℃ | Relative Humidity: | ≤90%RH |
---|---|---|---|
Test Range(closed Style Sensor): | 1.5-300 Mm (standard Size Is 10-30mm, Other | Power: | Electronic, AC 220V±10% |
Dual-function: | LMA And LF Capability | Weight: | 15 Kg (33 Lbs) |
High Light: | black wire rope flaw detector,high precision wire rope flaw detector,wire rope flaw detector hrd 100 |

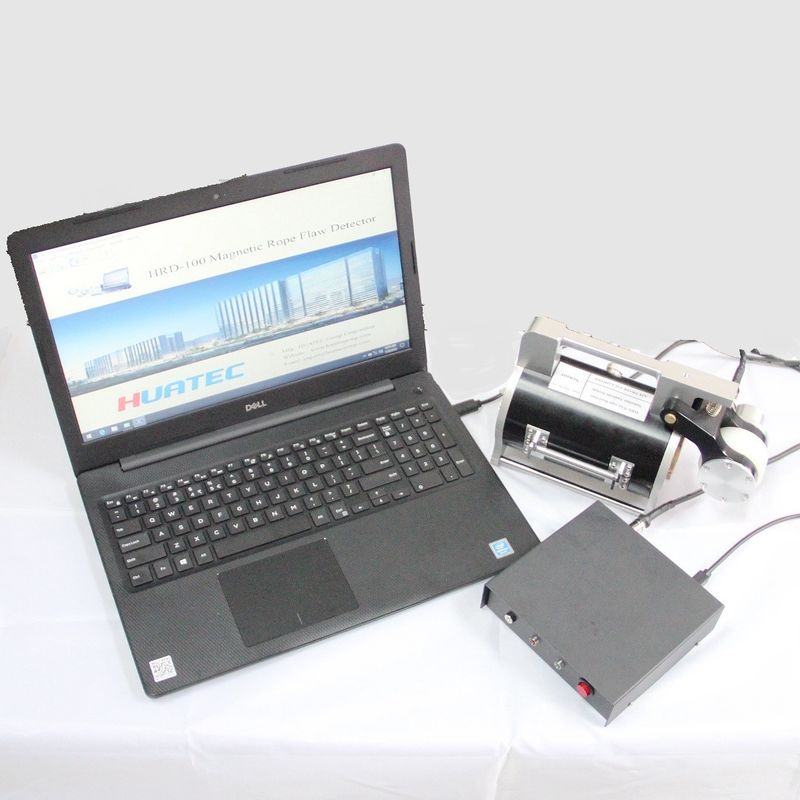

High precision Wire Rope Flaw Detector HRD-100
Specification
For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8") standard size is 10-30mm, other different sensor could be customized.
1. Speed along the rope during inspection - from 0 to 6 m/s (0 to 6,54 yards/s)
2. Onling detect rope’s flaw like booken,abrasion,corrosion,distortion,skip steel wire etc.
3. The test value could display broken quantity and broken area
4. USB interface sampling and analysing, online sound alarm and display test value
5. Sensor is circle shape, circumference encircle,axial magnetization, make the steel wire rope magnetize instant saturation.
6. Sensor is metal shell,waterproof,dustproof, quakeproof, dampproof.
7. High stability, reliable feature, high precision, anti-interference, data accuracy
8. Software is apply to Windows98/2000/xp/Vista/windows7 many kinds of PC system
9. Certificate standard is meet ASTM1571
10. Widely use in Mine, sodo, hoisting equipment, elevator, port machinery, cable bridge etc.
11. Size 330 x 235 x 190 mm (13" x 9,3" x 7,5 ")
12. Weight 15 kg (33 lbs
Features
1. Test range(closed style sensor): Φ1.5—300 mm (standard size is 10-30mm, other different sensor could be customized)
2. The relative speed of sensor and the wire rope is 0.0—6.0 m/s, optimal:0.3—1.5 m/s
3. The best space of sensor’s guide bushing and wire rope is 2—6 mm, allowable space:0—15mm
4. Speed does not affect readings
5. Accurate distance wheel assembly
6. Easy to install and re-install
7. Easy to handle and fix on the rope
8. 3 changeable hall sensor units
9. Temperature range -10 +50°C
10. PC software control directly, continuously testing rope length more than 10000m
11. Power: AC 220V±10%
12. Working temperature: -20℃~40℃
13. Storage temperature: -40℃~60℃
14. Relative humidity:≤90%RH
15. Dual-function: LMA and LF capability
Standard accessories
Probe 1 set Real time alarm 1pc
Signal cable 1pc HRD PC analyse software
laptop(optional) 1pc Communication cable 1pc
Charger 1pc Tool 1set
Instruction manual 1set
