Hand Type Electromagnetic Ultrasonic Metal Thickness Gauge Tg-14

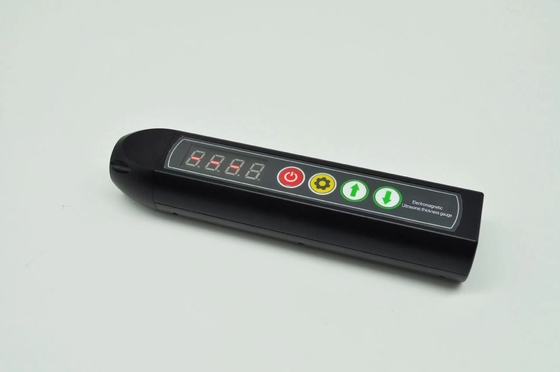

Electromagnetic ultrasonic thickness gauge TG-14

Features

Pocket pen type, no coupling agent, and non-contact thickness gauge

Human body engineering design, compact structure, super small volume, easy to carry, hand-held operation, strong magnetic absorption, improve fatigue conditions

Accurate thickness measurement, can pass through the coating, professional algorithm program support, do not need to coupling agent, do not need to grind the workpiece surface, allow the detected surface paint and wrapping layer, allow the workpiece surface uneven

Multi-material sound velocity can be pre-stored in the instrument, and the material sound velocity can be dynamically added and deleted at the same time. The sound velocity calibration increases the temperature compensation function, and effectively improves the measurement accuracy

Corrosion layers are allowed and the measurement can be improved with a maximum increase distance of 3mm

Application

No coupling agent, and non-contact, with normal temperature and also high temperature, electromagnetic ultrasonic thickness gauge TG-14 can test thickness of all kinds of conductor material such as titanium, aluminum, copper, stainless steel, alloy steel, carbon steel and cast steel.

Technical parameter

Measuring range: 1.5~240mm

Lifting clearance: 0~3mm

Operating frequency: 4MHz

Ambient temperature: -20 ° C to +50

High temperature sound speed compensation: automatic compensation

Temperature range: -150~800℃(higher temperature can be customized)

Probe type: standard room temperature probe, optional high temperature, high frequency probe, high temperature low frequency probe, B scanning probe

Resolution: 0.01mm

Adjustable range of sound speed: 1000~9999m/s

Continuous working time: 3h

Size: 151*76*35mm

Weight: 220g

Excitation mode: permanent magnet

Error range: ≤10mm, error ±0.05mm (> 10 mm + / - 0.01 + H / 200) mm (H is the thickness of the workpiece)

Power supply: lithium rechargeable battery

Standard delivery

TG-14 electromagnetic ultrasonic thickness gauge

Normal temperature probe

Instruction manual

Calibration certificate

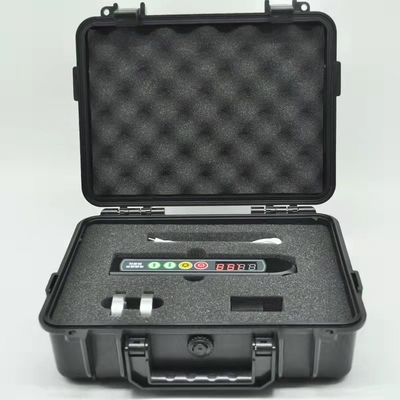

Carrying case

Optional accessories

High temperature

High frequency probe

High temperature low frequency probe

B scanning probe
