Product Details:
|
| Measuring Range: | Standard 0~1250μm | Resolution: | 0.1μm/1μm |
|---|---|---|---|
| Working Principle: | Magnetic & Eddy | Substrate: | FE / NFe Base, Depends On Probes |
| Accuracy: | ±2%H+1μm Note: H Is Thickness Reading | Display: | 128x64 LCD With Backlight |
| Memory: | 5 Files X 99 Values | Unit Switch: | Metric (μm) Imperial (mil) |
| Power: | AA Battery 2pcs (Non-aviation Transport) | ||
| High Light: | Micro coating thickness gauge,coating thickness gauge Testers,Portable coating thickness gauge |
||

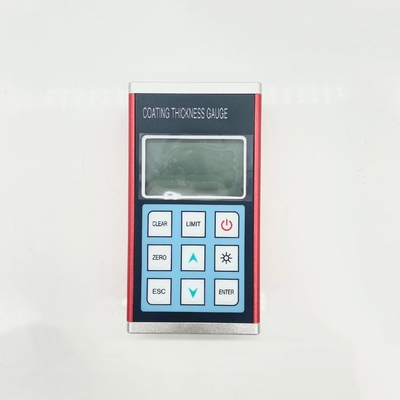

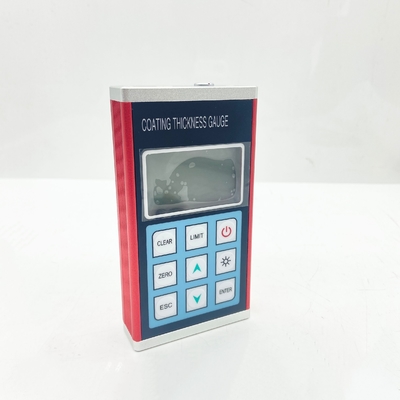

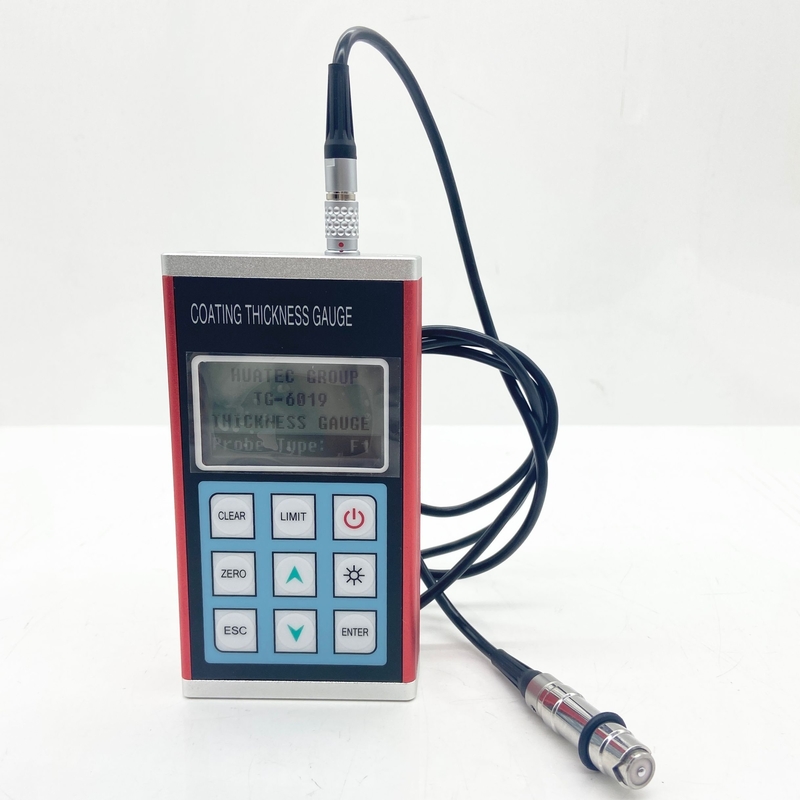

Metal Shape Coating Thickness Gauge TG-6019
TECHNICAL DATA
| Measuring Range | Standard 0~1250μm (probe F10 Max 10000μm, N3 0~3000μm, F3 0~3000μm) |
| Resolution | 0.1μm/1μm |
| Working Principle | Magnetic & Eddy |
| Substrate | FE / NFe base, depends on probes |
| Accuracy | ±2%H+1μm Note: H is thickness reading |
| Display | 128x64 LCD with backlight |
| Memory | 5 files x 99 values |
| Unit Switch | Metric (μm) Imperial (mil) |
| Working Temperature | Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C |
| Power | AA battery 2pcs (Non-aviation transport) |
| Size | 125x67x31mm |
| Weight | 340g |
MAIN FEATURE
*this model is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);

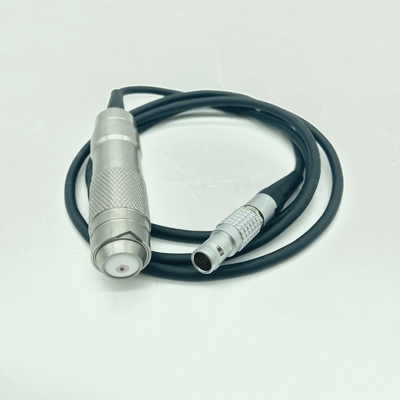

*Various probes optional, probe auto matching;
*Durable ruby probe, more wear and precise;
*Full metal shell design, sturdy, portable, high reliability;
*Alarm function when overrun the settable limiting range;
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
*Large storage, easy to delete single or multiple saved values;
*PC software optional, convenient the data transmission, analysis, printing etc.

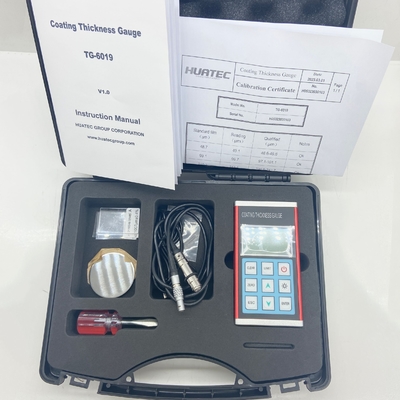

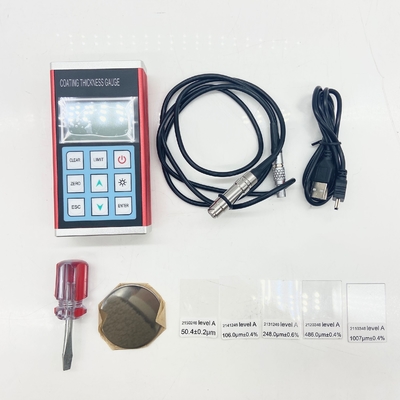

STANDARD DELIVERY
| ITEM | QTY |
| Main Unit | 1 PC |
| F1 or N1 Probe Optional | 1 PC |

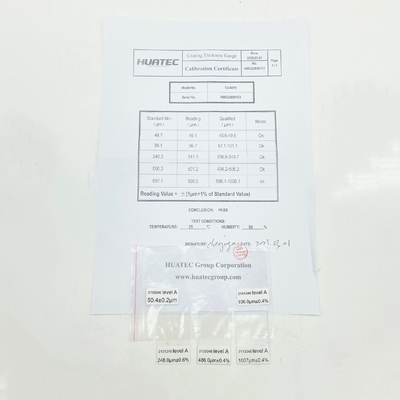

| Standard Calibration Piece | 1 SET |
| Fe or NFe Substrate | 1 PC |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
