Product Details:
|
| Product Name: | Coating Thickness Gauge | Model: | TG-6007 |
|---|---|---|---|
| Measuring Range: | 0-10000 μm | The Thinnest Substrate: | 0.4mm |
| High Light: | 10mm Coating Thickness Gauge,Fire proof Coating Thickness Gauge,Coating Thickness Gauge Up 13MM |
||

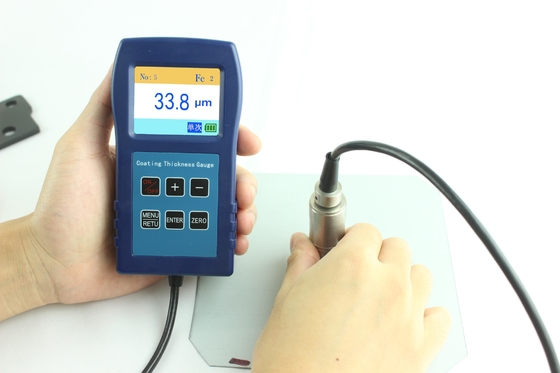

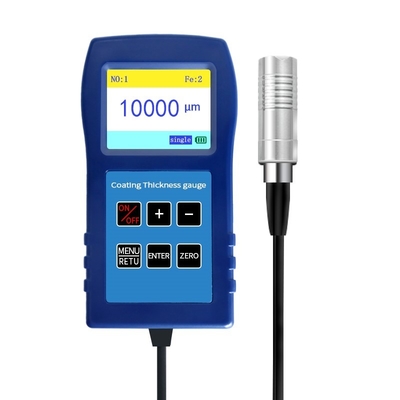

Big Range 10mm Fireproof Coating Thickness Gauge Range Up To 13MM
General introduction
TG-6007 coating thickness gauge is a large-scale coating thickness gauge, mainly used to measure the thickness of magnetic metal material surface coating coating object professional non-destructive testing instrument. It adopts the principle of magnetic thickness measurement, which can quickly and non-destructively measure the thickness of non-magnetic coatings on magnetic metal substrates (such as steel, iron) (galvanized, chromium, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coatings, anti-corrosion and fireproof coatings, etc.), which is very suitable for measuring ultra-thick anti-corrosion coatings on various large workpieces, with a range of up to 13MM, application field: widely used in coating industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction industry, commodity inspection and other testing fields.
Technical parameters
| Measuring range: | 0-10000 μm |
| Use environment: temperature | 0 ℃ -60 ℃, humidity: 20% RH - 90% RH, use in a strong magnetic field environment |
| The thinnest substrate | 0.4mm |
| Measurement accuracy | ± 3% H + 2μm |
| Resolution | 0.1μm /1 μm (0.1μm below 100μm, 1μm above 100μm) |
| Minimum base area | φ 20.5mm |
| Minimum curvature | convex 5mm; concave 25mm |
| Dimensions | 130 (L) × 70 (W) × 25 (H) mm |
| Weight | 100g |
| Power supply | three (AAA) alkaline batteries |
Instrument features
Simple operation, fast test speed, good sensitivity and high measurement accuracy
Using alloy probe, hard and durable, accurate
There are two measurement methods: continuous measurement and single measurement
There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), and number of measurements (No).
Mass storage, can be divided into 10 groups of storage, 200 in each group, a total of 2000 data can be stored
Store data view delete function
Three calibration methods: zero calibration, two-point calibration, and multi-point calibration
Upper and lower limit alarm function (can be set in single measurement mode)
The operation process is marked by a beep (in single measurement mode).
Automatic identification of ferrous and non-ferrous substrates
Metric conversion μm/Mil
Sunshine mode (used in strong light)
English bilingual version
2.3-Inch large color screen with large font size display
Manual/automatic shutdown function
Standard configuration
1 Host TG-6007 √
2 Standard tablets √
3 Iron matrix √
4 Dry batteries AAA 3pcs √
5 Instruction manual √
6 Certificate of conformity √
7 Cleaning cloth √
