Product Details:
|
| Product Name: | Ultrasonic Flaw Detectors | Model: | FD560 |
|---|---|---|---|
| Range: | 0-10000 Mm ,at Steel Velocity | Frequency: | 10-2000Hz |
| High Light: | high sensitivity portable ultrasonic flaw detectors,ndt portable ultrasonic flaw detectors,ndt portable flaw detector |
||

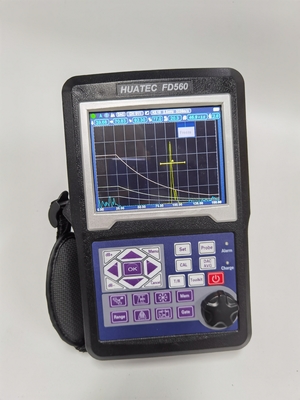

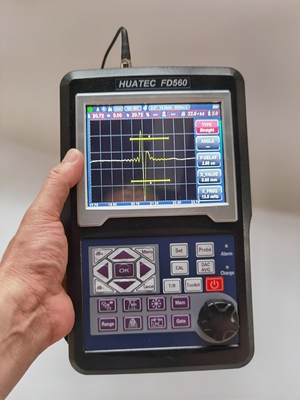

High Sensitivity Portable Ultrasonic Flaw Detectors Ndt Products
User friendly dialog interactive helps operations like Calibration, making curves, etc.
All tools you need: DAC, AVG, TCG AWS, etc.
| Range | 0-10000 mm ,at steel velocity |
| Material Velocity | 100～20000 m/s |
| Frequency | 10-2000Hz |
| Dynamic range | ≥38dB |
| Linearity | Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH ) |
| Resolving Power | >40dB (5P14) |
| Sensitivity Leavings | >68dB |
| Reject (suppression) | 0 to 80% full screen height |
| Memory | 1000 A graph |
| Test Modes | Pulse echo, dual element and thru-transmission |
| Power Requirements | AC Mains 100-240 VAC, 50-60 Hz |
| Probe Delay/Zero Offset | 0 to 99.99µs |
| Transducer Connections | BNC or LEMO |
| Sensitivity | 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB |
| Bandwidth | 0.2 to 25 MHz |
Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
Can use probe frequency 20M perfectly .
IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.
Battery lasts 15 hours for one charge.
Portable Ultrasonic Flaw Detector (connector can be BNC or Lemo 01)
Straight Beam Transducer (2.5 MHz, Φ20)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cable for the transducer (BNC-Lemo 00,or optional Lemo 01- Lemo 00)
Rechargeable Li-Ion Battery Package, 8 amp hour
Power supply/charger unit
Operating Manual in English
Strap
Options:
