Product Details:
|
| Package: | Suitcase | Brand: | Huatec |
|---|---|---|---|
| Hardness Systems: | Leeb (HL), Brinell (HB).Rockwell A (HRA)... | Storage Temperature: | -25～70℃ |
| Model: | RHL-140 | Communication Interface: | USB2.0 (RS232,RS485) |
| Measuring Direction: | 360 ° | Data Storage: | 510 Files, 46 To 215 Groups |
| High Light: | CE portable impact hardness tester,battery powered portable impact hardness tester,battery powered digital hardness testing machine |
||
The Hardness Testing Machine is a portable, accurate and reliable instrument for measuring the hardness of materials. It is equipped with data storage capacity of 510 files and 46 to 215 groups, which allows it to store a large amount of data for future review. The machine is capable of testing the hardness of materials in different systems, such as Leeb (HL), Brinell (HB).Rockwell A (HRA) etc. The communication interface of the machine is USB2.0 (RS232,RS485). Moreover, it comes with a suitcase package for easy and convenient carrying. The charging time of the machine is 2-3hours.
This Hardness Testing Machine is an ideal choice for engineers and technicians who need a portable and reliable tool for hardness testing. It is a great way to quickly and accurately measure the hardness of various materials on the go.
| Parameter | Value |
|---|---|
| Model | RHL-140 |
| Battery | 7.4V,Li(2000mAh)Battery |
| Charging power supply | 5VDC,220VAC |
| Display | TFT, 320 × 240 TFT LCD Screen |
| Impact device type | D,DC,DL,D+15,G,E,C |
| Storage temperature | -25～70℃ |
| Measuring range | HLD(170～960. HRA(59～85).... |
| Data storage | 510 Files, 46 To 215 Groups |
| Charging time | 2-3hour |
| Communication interface | USB2.0 (RS232,RS485) |

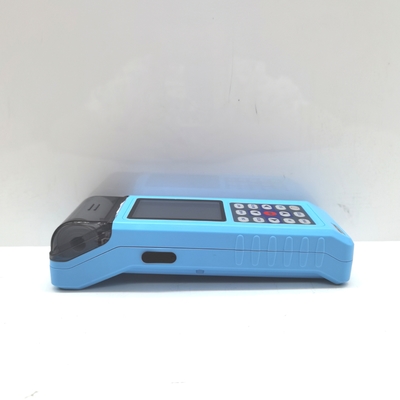

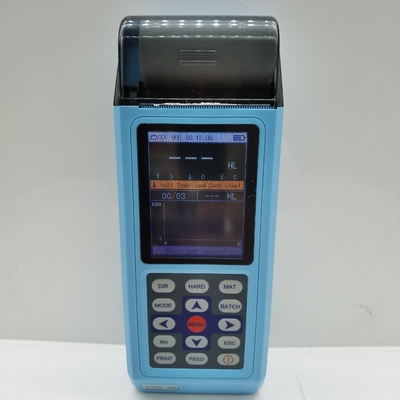

The Huatec RHL-140 Hardness Testing Machine is a portable device providing accurate and reliable hardness testing results. This machine can be used to measure the hardness of a variety of metals, alloys and other materials, such as steel, aluminum, copper, titanium, brass, etc. It is equipped with D,DC,DL,D+15,G,E,C Impact Device types to meet various testing requirements, and features a USB2.0, RS232, RS485 communication interface for easy data transfer. It also has a Gross weight of 5kgs and can store up to 510 files and 46 to 215 Groups of data.
The Huatec RHL-140 Hardness Testing Machine is ideal for testing the hardness of a wide range of components and materials, from small components to large components. It is perfect for laboratory and industrial applications and is suitable for use in automotive, aerospace, military and other industries. It is a cost-effective and reliable solution for measuring the hardness of any material in any environment. With its portable size and easy operation, it is the perfect solution for any hardness testing requirement.
Huatec provides a wide range of customization options for its Hardness Testing Machine (RHL-140), allowing you to tailor it to your exact needs.
This machine is designed to meet the highest standards, with a operating temperature range of 0-40℃ and a storage temperature range of -25-70℃. It is powered by a 7.4V Li(2000mAh) battery and can be fully charged in 2-3hours.
If you're looking for a reliable, portable hardness tester to meet your requirements, Huatec's Hardness Testing Machine (RHL-140) is the perfect choice.

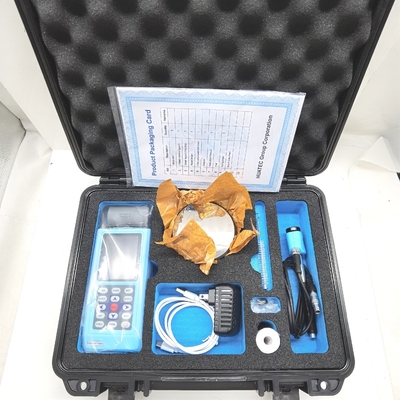

Packaging and Shipping for Hardness Testing Machine
The Hardness Testing Machine is packed according to the following procedure:
