Product Details:
|
Range Of Scanning (mm): | 0~10000mm | D-delay (us): | -20~+3400µs |
---|---|---|---|
P-delay (us): | 0.0~99.99 Adjusting Steps: 0.01 | MTLVEL(m/s): | 1000~9999 |
Frequency Of Repeating Transmitting (MHz): | 0.4–20 | Gain Adjustment (dB): | 0~110 |
Suppress: | 0%~80% Of Screen Height, Step: 1% | Data Save: | 500 A-Scan Images (including Setting Of Instrument) |
Port Type: | BNC | ||
High Light: | digital ultrasonic flaw detector factory,universal digital ultrasonic flaw detector,ultrasonic crack detection machine factory |

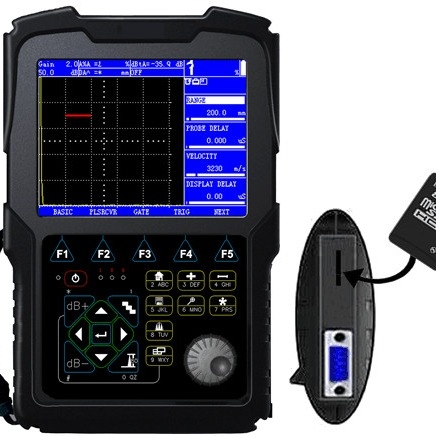

FD600 SD card A scan Universal Ultrasonic Flaw Detector
Performance Features
Designation | Technical Data |
Range of scanning (mm) | 0~10000 |
D-delay (ms) | D-delay (ms):-20~+3400 |
P-delay (ms) |
P-delay:0.0~99.99 Adjusting steps: 0.01 |
MTLVEL(m/s) |
MTLVEL:1000~9999 7 fixed levels: 2260,2730,3080,3230,4700,5920,6300 Adjusting steps: 1 |
Working mode | Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
Frequency of repeating transmitting (MHz) | 0.4–20 |
Gain adjustment (dB) |
0~110 Adjusting step: 0.0,0.2,0.5,1,2,6,12 |
Suppress | 0%~80% of screen height, step: 1% |
Vertical linear error | Vertical linear error is not more than 3% |
Horizontal linear error | Not more than 0.2% in the scanning range |
Allowance of detection sensitivity | ≥62 dB |
Dynamic range | ≥32 dB |
Alarm | Three modes, i.e. forbidden wave, loss wave and auto |
Display | Display: high-brightness graphic lattice |
A-Scan display area | A-Scan display freezing and de-freezing A-Scan filling |
Waveform displaying way | full wave |
Detection channel | 10 |
Data save | 500 A-Scan images (including setting of instrument) |
Standard communication interface with PC | RS232 |
Measuring unit | mm/inch |
Battery | Li battery 4×3.6V 5000mAh |
Power adaptor |
Input 100V~240V/50Hz~60Hz Output 9V~12VDC/3A~4A |
Working temperature | 0℃~40℃ |
Working humidity | 20%~90% |
Port type | BNC |
Overall dimension (mm) | 210×150×45 |
Weight (kg) | 1.0 |
