Product Details:
|
| Contr Oller Dimensions (mm): | 350x290x1 60 | Generator Dimensions (mm): | 320x320x7 45 |
|---|---|---|---|
| Beam Angle: | 40°+5 ° | Genera Tor Weight (KG): | 33.5 |
| Input (KW): | 2.5 | Output Voltage (Kv): | 150-250 |
| Contr Oller Weight (KG): | 11 | Focus Spot (mm): | 2.0X2.0 |
| High Light: | directional x ray flaw detector,Panoramic x ray flaw detector,directional portable x ray flaw detector |
||

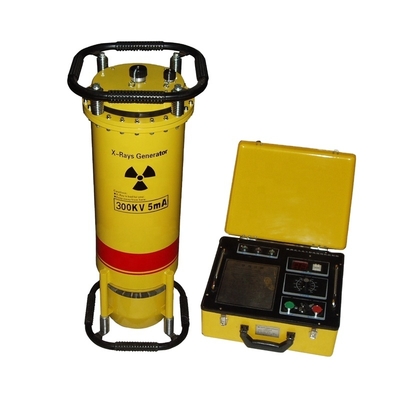

Directional radiation portable X-ray flaw detector XXG-2505 (Ceramic X-ray Tube)
XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more durable than the glass tube: shake proof and long working life.
| Output voltage (Kv) | Input (KW) | Focus spot (mm) | Beam angle |
Max penetra tion (mm) |
Weight (KG) | Dimensions (mm) | |||
| Genera tor | Contr oller | Generator | Controller | ||||||
| XXG-250 | 150-250 | 2.5 | 2.0X2.0 | 40°+5 | 38 | 33.5 | 11 | 320x320x7 | 350x290x1 |
| 5 | ° | 45 | 60 | ||||||
Standard Delivery
| DirectionalceramicX-ray tube | 1 Pcs | |
| Generator | 1 Set | |
| High voltage joins cable | 1 Pcs | 25 Meters |
| Controller | 1 Set | |
| Power cable | 1 Pcs | 10 Meters |
| Grounding cable | 1 Pcs | 5 Meters |
| Accessories | 1 Set | |
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) |
||
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient for local operation
●Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification
