DA301 Ultrasonic Wall Thickness Probe 5MHz 1.2-200mm Range

Large Image : DA301 Ultrasonic Wall Thickness Probe 5MHz 1.2-200mm Range

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DA301

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DA301 Ultrasonic Wall Thickness Probe 5MHz 1.2-200mm Range

Description

Working Temperature:

-5℃—50℃

Frequency Range:

5MHz

Measurement Range:

1.2-200mm

Wafer Size:

10mm

Highlight:

ultrasonic wall thickness probe

DA301 thickness measurement probe

non-destructive testing probe with warranty

DA301 Ultrasonic Wall Thickness Measurement Probe

Product Specifications

Attribute	Value
Working temperature	-5℃—50℃
Frequency range	5MHz
Measurement range	1.2-200mm
Wafer size	10mm

Product Description

The DA301 Ultrasonic Wall Thickness Measurement Probe features a measurement range of 1.2-200mm, making it suitable for wall thickness measurement of various materials including metals, plastics, and ceramics. This probe is widely used in wall thickness detection for equipment and pipelines across industries such as petrochemicals, aerospace, and mechanical manufacturing.

Technical Parameters

Probe frequency	5MHz
Chip size	10mm
Center frequency	4.93MHz
Sensitivity	27dB
Bandwidth (-6dB)	38%
Temperature range	-5℃--50℃
Probe type	Dual-crystal probe
Connector type	Lemo 00

Additional Specifications

Component size: 9mmø
Contact area: 12.5mmø
Focusing distance: 8mm
Compatible cable: DA231 cable required for connection to ultrasonic thickness gauge

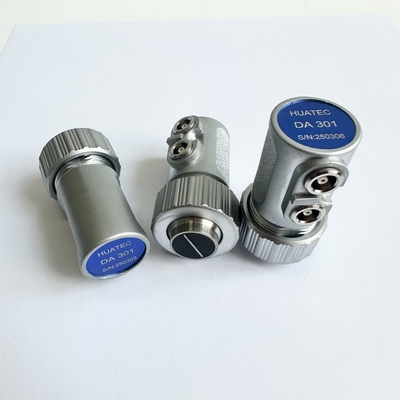

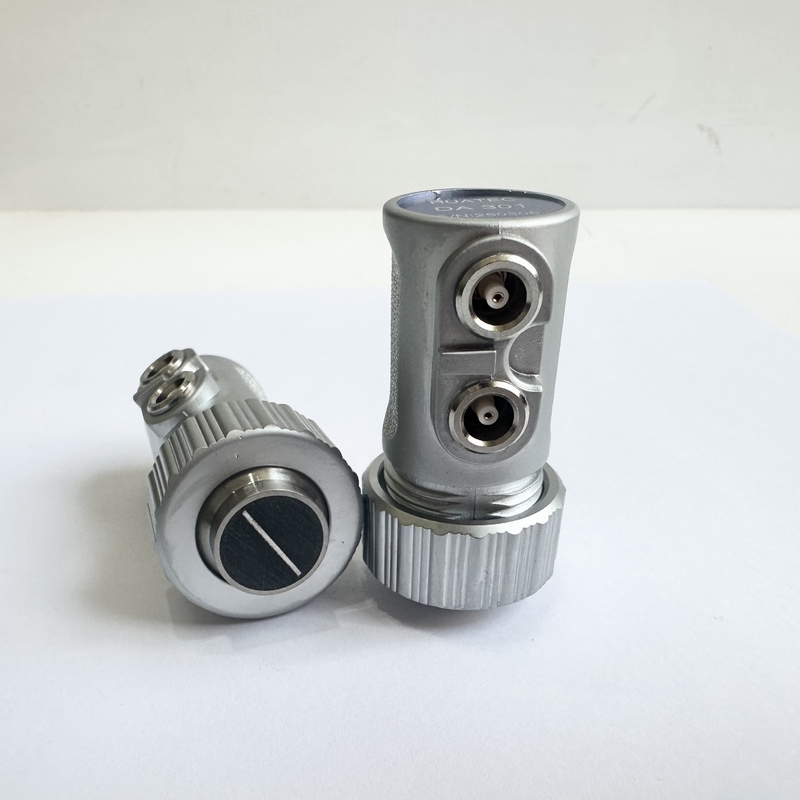

Product Images

Tag:

Contact Person: Ms. Shifen Yuan

Tel: 8610 82921131,8613910983110

Fax: 86-10-82916893
