Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704

Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704
Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704

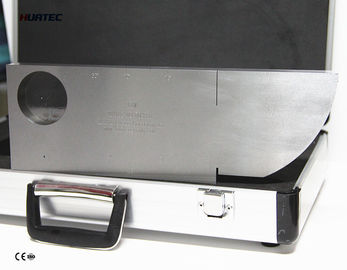

Large Image :  Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO
Model Number: IIW V-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Packed in ABS engineering plastics,and then reinforced with carton for outer packing
Delivery Time: 3-7 working days,V1 and V2 have stock
Payment Terms: TT, L/C, Western Union
Supply Ability: 1000pcs per month

Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704

Description
Product Name: Calibration Block Type: IIW V1 (A2)
Material: 1018 Carbon Steel, LY12/6063/7075 Aluminum,304 Stainless Steel Standard: BS 2704 Block A2 Mod. 1, DIN 54-120, AS 2803, ISO 2400
Dimensions: 300mm X 100mm X 25mm Packing: ABS Engineering Plastics
High Light:

ut calibration blocks

,

ultrasonic reference blocks

Ultrasonic Flaw Detector Calibration Blocks IIW V-1 (A2) includes a 100mm radius, 1.5mm and 5.0mm holes



Specifications:
Calibration blocks is an important supplementary material in the Ultrasonic testing, used to calibrate the sensitivity of the ultrasonic flaw detector and ultrasonic probe. Our testing block is certificated by the authority of the state depeartment. Our products include: domestic standards UT blocks, European standard UT block, NDT block, hexagonal testing block, and so on.



For calibrating ultrasonic flaw detection equipment in both laboratory and on-site conditions. Our version of this block includes a 100mm radius, 1.5mm and 5.0mm holes, engraved reference mark scales, and two optional slots at the zero point which provide calibrating signals at intervals of 100mm range. In accordance with British Standard BS 2704 Block A2 Mod. 1, German Standard DIN 54-120, Australian Standard AS 2803, and ISO 2400. Also meets the requirements of the Dassault Aviation Falcon 10 Mandatory Service Bulletin #294 dated March 20, 2002.

This block is not to be confused with the new EN 12223/ ISO 2400 Calibration Block No. 1 (also called the K1 block,) which is similar but contains a 3.0mm through-hole rather than a 1.5mm hole. See our test block store for this block.

• Dimensions: 300mm x 100mm x 25mm
• Net weight: 4.5kg       Gross weight: about 6.5kg
• Made from 1018 carbon steel, LY12/6063/7075 aluminum,304 stainless steel.


Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 0Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 1Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 2







Ultrasonic Flaw Detector / UT Calibration Blocks IIW V1 ( A2 ) Type DIN 54-120 BS2704 3
