Product Details:
|
| Product Name: | Calibration Block | Material: | Carbon Steel |
|---|---|---|---|
| Model: | V1,V2,PSM-5... | Package: | ABS Box |
| Highlight: | Ultrasonic Flaw Detector Calibration Test Block,Calibration Test Block Ultrasonic Flaw Detector |
||

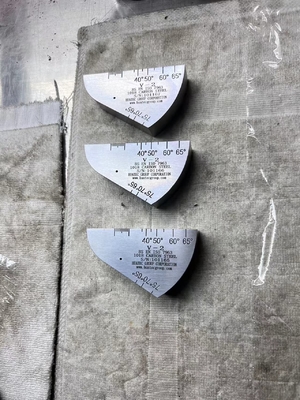

Ultrasonic Flaw Detector Calibration Test Block
HUATEC offers calibration test blocks for ultrasonic flaw detectors with different materials
| Model | Standard | |
| IIW V-1 | ISO2400-1972E, BS2704 DIN 54120 | carbon steel |
| IIW V-2 | ISO2400-1972E, BS2704 DIN 54120 | carbon steel |
| IIW V-1 | ISO2400-1972E, BS2704 DIN 54120 | stainless steel 304 |
| IIW V-2 | ISO2400-1972E, BS2704 DIN 54120 | stainless steel 304 |
| IIW V-1 | ISO2400-1972E, BS2704 DIN 54120 | Super Duplex |
| IIW V-2 | ISO2400-1972E, BS2704 DIN 54120 | Super Duplex |
| Stand for IIW V-1 | ISO2400 | |
| K1 | DIN EN 27963 | carbon steel |
| K2 | DIN EN 27963 | carbon steel |
| A2 | BS2704,same to IIW V-1 | |
| A4 | BS2704,same to IIW V-2 | |
| A5 | BS2704,same to IOW | |
| A6 | BS2704 | |
| RTB A7 | BS2704 | |
| ASME 1# | ASME BPVC-V (2010) Art.4 non-pipe weld | 19 |
| ASME 2# | ASME BPVC-V (2010) Art.4 non-pipe weld | 38 |
| ASME 3# | ASME BPVC-V (2010) Art.4 non-pipe weld | 76 |
| ASME 4# | ASME BPVC-V (2010) Art.4 non-pipe weld | 127 |
| ASME 5# | ASME BPVC-V (2010) Art.4 non-pipe weld | 178 |
| ASME 6# | ASME BPVC-V (2010) Art.4 non-pipe weld | 230 |
| ASME 1# | ASME BPVC-V (2010) Art.5 pipe weld | t<=25mm |
| ASME 2# | ASME BPVC-V (2010) Art.5 pipe weld | t>25~51mm |
| ASME 3# | ASME BPVC-V (2010) Art.5 pipe weld | t>51~102mm |
| ASME 4# | ASME BPVC-V (2010) Art.5 pipe weld | t>102~152mm |
| ASME 5# | ASME BPVC-V (2010) Art.5 pipe weld | t>152~203mm |
| ASME 6# | ASME BPVC-V (2010) Art.5 pipe weld | t>203~254mm |
| ASME 7# | ASME BPVC-V (2010) Art.5 pipe weld | t>254mm |
| IOW | API RP 2X-2004 BS 2704:1978 | |
| IOW type 2 | AS2083,beam profile block | |
| DAC | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| RC Resolution | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| DS | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| IIW- type 1 | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| IIW type 2 | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| DSC | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| SC | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| UT calibration block | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| MAB miniature angle beam block | AWS D1.1/D1.1M-2010 ASTM E164-2008 | |
| DC | AWS D1.1/D1.1M-2010 ASTM E164-2008 |
