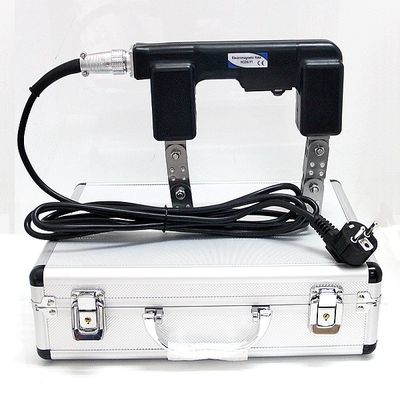

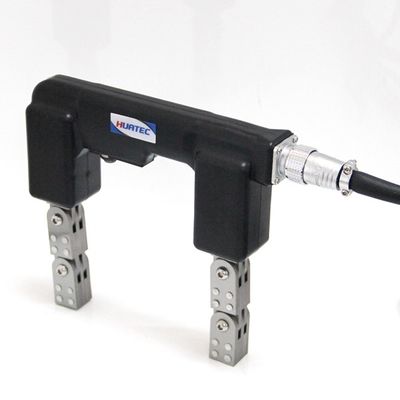

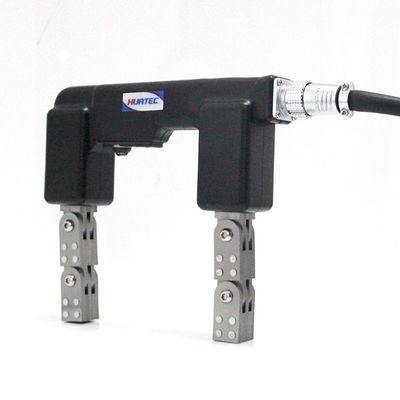

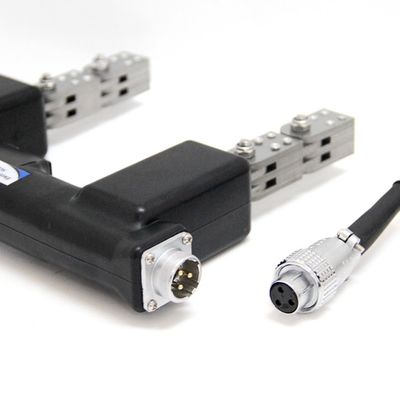

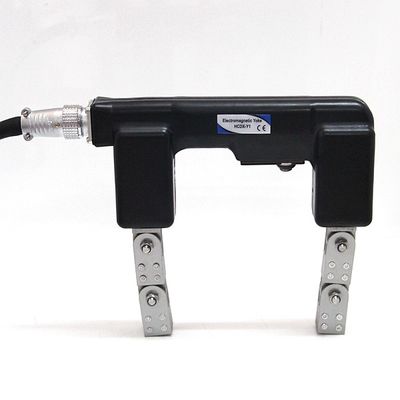

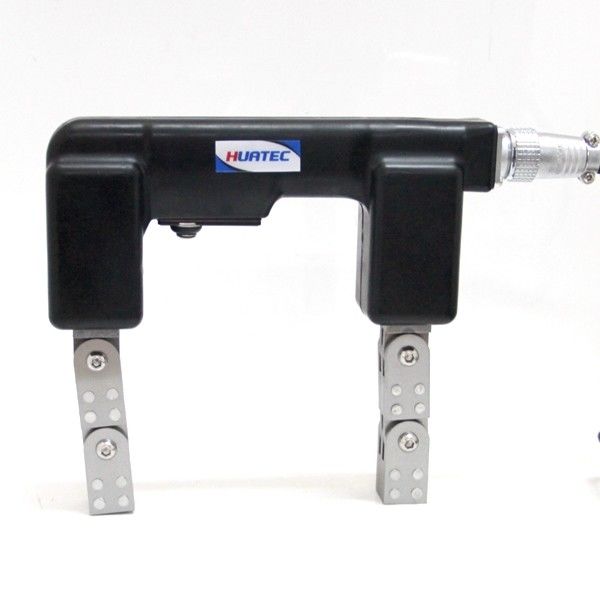

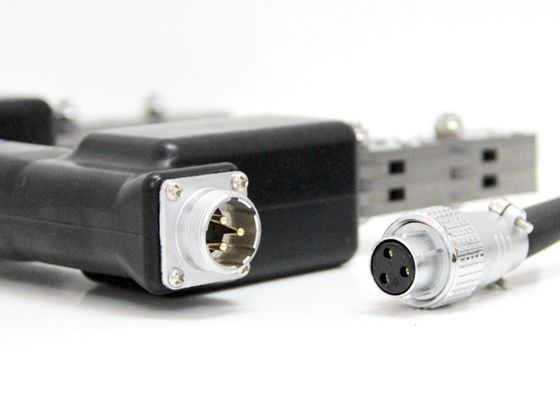

Handy Magna Yoke Electromagnetic Yoke Magnetic Flaw Detector HCDX-Y1
The magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, small size, light weight and convenient portability. The flaw detector can be used directly in alternating current,
It is suitable for hull weld inspection, high altitude steel structure weld detection and pressure vessel internal operation. This instrument is suitable for steel structure parts of power, metallurgy, petrochemical, machinery and other industries, such as boiler, pressure vessel, pressure pipe, ship body weld and welding structure of various types of ferromagnetic material surface and magnetic particle flaw detection of near surface defect.
This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".
Product features
Complete Sealed, durable construction
Chemical and abrasion resistant
Exceeds ASTM lifting specifications
There are places directly connected to AC power supply, which can be directly connected with AC power supply.
Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.
Adjustable magnetization
.
Technical parameter
Working temperature: -10 ~ +40 C
Storage temperature: -20 ~ 50 C
Relative humidity: <80% non condensation
Work temperature rise: <18 C
Temporary load rate: >50%
Sensitivity: A1 standard test piece 15/50 groove clearly displayed.
AC minimum power hoisting power: >4.5kg (44N)
Model guide
HCDX-Y1

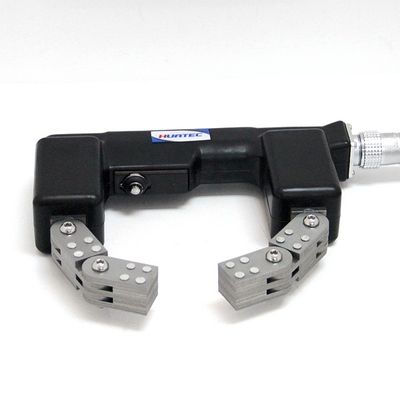

| Electromagnetic Yoke | HCDX-Y1 |
| Electrode spacing | 0～210mm |
| Maximum current | 2.8A |
| weight | 2.2kg |
| major function | Direct alternating current magnetization |
Battery pack optional table:
| Name | DC-AC inverter battery pack | DC-AC inverter battery pack | DC magnetized power supply |
| Model | MT-600 | MT-610 | MT-500 |
| output voltage | AC | AC | DC |
| Power type | Lithium battery | Lithium battery | Lithium battery |
| Charging current | 2A | 2A | 2A |
| Battery capacity | 4400mAh | 8000mAh | 4400Ah |
| Working time | About 4h | About 6h | About 8h |
| Shape size | 55×95×180(mm) | 55×95×240(mm) | 55×95×110mm |
| weight | 1.0kg | 1.2kg | 0.65kg |

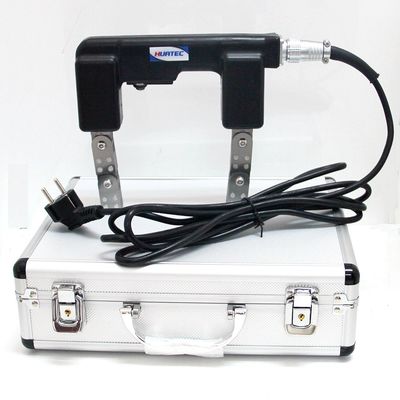

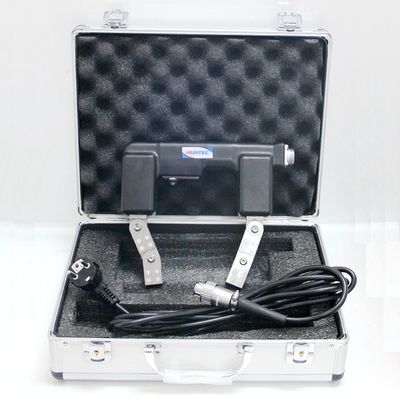

Standard configuration:
HCDX-Y1
Magnetic powder flaw detector host 1
Power line 1
Instrument box 1
Defect examples: Defect location:
Inclusions Seams Surface and subsurface Ideal for: Fatigue cracks
Shrink cracks Tears Laps Field testing pot inspections
Welding slag Grinding cracks In-service inspections
Quenching cracks Demanding environments
Weld inspection
