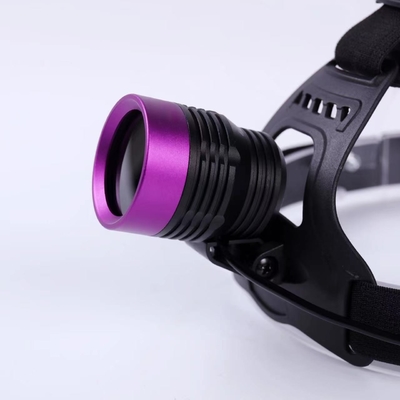

DG-3101S Adjustable UV Black Light Headlamp
Main features
A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type
black light that frees the user's hands during inspections.
Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration
inspection, mine inspection, etc.
The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.
The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light
to prevent accidental switching; DG-3101S UV helmet type black light specially designed.
Constant current drive line, can keep the UV intensity constant, even when the battery capacity is
insufficient.
DG-3101S UV helmet type black light head can be 90 degrees up-and-down adjustment.
Technical parameter
| Peak wavelength |
365-370nm |
| Ultraviolet intensity |
10000μW/ cm distance is 38cm |
| UV LED quantity |
1× 5W 365nm UV LED,LED The average life span is 30,000 hours |
| Power |
2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours |
| Irradiated area |
50mm at a distance of 38 centimeters |
| Dimension |
40 ×38mm,weight:200g no accessories |
Helmet type black light product application
▪ Refrigerant leak detection
Penetration testing, fluorescence detection
▪ Engine oil leak detection
▪ Forensics fingerprints, blood observations
▪ Fluorescence observation of ore
Biopolymers, fluorescence observation
Helmet type black light product standard configuration
Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
