Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g

Large Image : Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-100G

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD2245-USD2535/SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g

Description

Compression Stroke:

2.50mm

Maximum Load:

980g

Pressure Load:

50g

Head Shape And Size:

Ball R12.70

Highlight:

Inbuilt Printer Coulometric Thickness Tester

Nickel-copper-nickel Electroplating Coulometric Thickness Tester

Precision Coulometric Thickness Tester

TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester

TG-100G is more focused on the automobile, motorcycle, and sanitary ware industries, because these industries will use the potential difference function. And neodymium iron boron industry, to solve the test problems of the underlying nickel. Automobiles such as: signs, car door locks, car handles, car interior parts, motorcycles such as mufflers, motorcycle, brackets, sanitary wares such as: mixing water valves, towel racks, neodymium Iron-boron: mainly nickel-copper-nickel electroplating.

Technifical specification

Plating type	Single metal pating layer	Composite multiple plating layer	Alloy plating layer	Multi-layer nickel
	Cr,Ni,Cu, Zn,Sn,Ag, Au,Cd,Co, Pb etc.	Cr/Ni/Cu etc.	NiP,ZnNi, SZn,SPb etc.	The thickness of each layer of multilayer nickel and the potential difference between nickel layers
Substrate	Metal		Non-metal
	Steel,copper,copper alloys, die-cast zinc,aluminum etc		Plastic,neodymium iron boron,ceramics etc
Measuring range	0.03～300μm
	The best use range 0.03～50um,Over 50um,the error will gradually become larger
Resolution	0.01um
Repeatability	≤5%
Indication error	≤10%
Potential range	0～3000mv
Potential accuracy	0.01mv
Probe size	Standard:φ2.4,φ1.7(unit:mm) Optional:φ1.2,φ1.0,φ0.8(unit:mm)
Wire test	Diameter 0.050～4mm multi-layer coating thickness on the cylindrical surface, without conversion, direct reading
Test stand	Standard:STD07 Optional:STD16,STD19,STD-W wire test stand
Calibration	Factory calibration calibrate a single coating with calibration foils or uniformly calibrate
Stop measurement	Automatic judgment
Stand-alone use	When not measuring the potential difference
Print	A laser or inkjet printer can be purchased separately to print A4 format test results, Excel format, content can be customized In stand-alone use, a thermal printer can be used to print the test results
Print Content	Plating type, single measurement value, average value, maximum value, minimum value, standard deviation, coefficient of variation, time Thickness-potential curve
Display mode	Online use:PC Screen display Stand-alone use:126*64 dot LCD screen
Data stroage	PC Database
Test Hot Key	Stand-aone use,you can customize the hot key for single plating or multiple plating/substrate combination
Curve Analysis	can be displayed on the same screen and modified at will
Pause test	For thick coatings, you can pause at any time and continue the test after changing the electrolyte
Data check	multiple query methods
Operating system	Windows XP,win7,win10
Software upgrade	New products in December 2019, continuous upgrade
Power Supply	AC 220V, AC 110V can be customized
Host Size	200255161(mm)

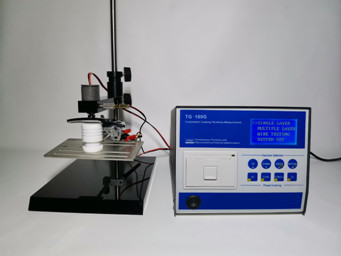

Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g 0

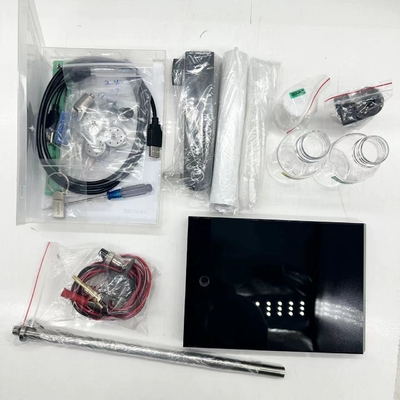

Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g 1
