5.0mm Evaluation Length SRT-5000B Pocket Sized Hand-held Surface Roughness Tester For Industrial

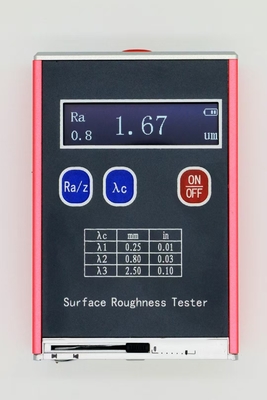

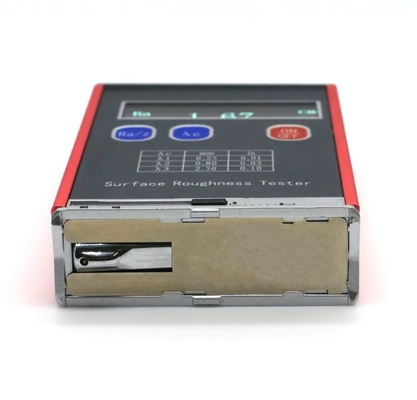

Large Image : 5.0mm Evaluation Length SRT-5000B Pocket Sized Hand-held Surface Roughness Tester For Industrial

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SRT-5000B

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD345/set - USD390/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

5.0mm Evaluation Length SRT-5000B Pocket Sized Hand-held Surface Roughness Tester For Industrial

Description

Parameters (µm):	Ra, Rz, Rq, Rt	Traverse Length (mm):	6
Sampling Length (mm):	0.25, 0.80, 2.50	Evaluation Length (mm):	1.25, 4.0, 5.0
Display Error:	±(10nm+0.1A)
Highlight:	5.0mm Surface Roughness Tester , Pocket-Sized Surface Roughness Tester , Industrial Surface Roughness Tester

SRT-5000B Ra, Rz, Rt, Rq Pocket-Sized Hand-held Surface Roughness Tester

General Introduction

Pocket-Sized Surface Roughness Tester SRT-5000B is a new generation of Surface Roughness Tester Series. It features high accuracy, wide application, simple operation, portability and stable performance. The tester is widely used in measuring the surface roughness of various metals and non-metals. Its integrated structure of sensor and main body and hand-held design make it suitable to be used in production sites.

Possess Ra, Rz, Rt, Rq.
Pocket-sized, easy to carry, anti-shock and vibration.
One point calibration is simple and easy to use, and can be quickly completed by the user.
Piezoelectric ceramic sensor, firm and durable.
256*64 OLED display with high brightness, low power consumption and exquisite font display.
Large capacity rechargeable lithium battery, long working time.
Possess 0.25, 0.8, 2.5three kind of sampling length.
Metal shell, strong anti-interference ability.
Conform to GB, ISO, DIN and JIS standards.
High speed DSP chip, high computing speed.
Rapid calculating speed, only takes 2s to complete calculation after measurement stroke.

Technical Parameters

Parameters (µm)	Ra, Rz, Rq, Rt
Traverse Length (mm)	6
Sampling Length (mm)	0.25, 0.80, 2.50
Evaluation Length (mm)	1.25, 4.0, 5.0
Measuring Range (µm)	Ra, Rq: 0.05 ~ 15.0 Rz, Rt: 0.1 ~ 50
Display error	±(10nm+0.1A)
Repeatability of Displayed Value	＜6%
Stylus	Diamond tip Radius:10 µm±1 µm Diamond tip Angle:
Stationary measuring force and its variations of the stylus	Stationary measuring force: ≤0.016N Variation of the measuring force: ≤800N/m
Pressure of the skid-dependent of the sensor	≤0.5N
Battery	3.7V Li-ion battery
Overall Dimensions	106 mm×70 mm×24 mm
Host Weight	200g
Operating conditions	Temperature: -20℃～40℃ Relative humidity: < 90% No vibration; no corrosive media
Conditions for storing	Temperature: -25℃～60℃ Relative humidity: < 90%

Working Principle

When the sensor was driven by a driver to make a linear uniform motion along the testing surface, the stylus which touches with the work surface moves up and down along the work surface perpendicularly. Its motion is converted into electric signals, which are amplified, filtered and transformed into digital signals through A/D. The signals are then processed by CPU into Ra, Rz, Rq and Rt values and then displayed on the screen.

Recommended Sampling Length Table

Ra (µm)	Rz (µm)	Sampling Length λc (mm)
>5~10	>20~40	2.5
>2.5~5	>10~20	2.5
>1.25~2.5	>6.3~10	0.8
>0.63~1.25	>3.2~6.3
>0.32~0.63	>1.6~3.2
>0.25~0.32	>1.25~1.6	0.25
>0.20~0.25 >0.16~0.20	>1.0~1.25 >0.8~1.0
>0.125~0.16 >0.1~0.125 >0.08~0.1	>0.63~0.8 >0.5~0.63 >0.4~0.5
>0.063~0.08 >0.05~0.063 >0.04~0.05	>0.32~0.4 >0.25~0.32 >0.2~0.25
>0.032~0.04 >0.025~0.032 >0.02~0.025	>0.16~0.2 >0.125~0.16 >0.1~0.125

Packing List

	Part	Quantity	Note
Standard	Host SRT-5000B	1
	5V ac power adapter	1
	USB cable	1
	Operating manual	1
	Warranty card	1
	Calibration certificate	1
	Packing list	1
	Qualified certificate	1
	Equipment case	1
Optional	Standard sample template	1
Optional	Glass support	1
