Electromagnetic 110V/220V Yoke Kit AC&HWDC

Electromagnetic 110V/220V Yoke Kit AC&HWDC

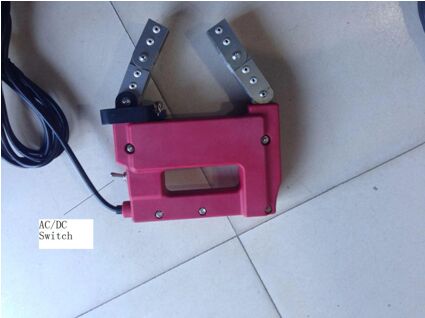

An overview of Electromagnetic AC HWDC Yoke
The HCDX-230 series is a durable, high-strength AC, AC/DC, DC AC/DC switch model magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the HCDX-230 is ideal for inspection of welds and other remote testing.

Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs.

The charging type magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, small size, light weight and convenient portability. The flaw detector can be used directly in alternating current, and can also be used for AC magnetization power supply (AC battery pack) and DC magnetized power supply (DC-AC inverter battery pack), which is efficient and portable. It is suitable for hull weld inspection, high altitude steel structure weld detection and pressure vessel internal operation. This instrument is suitable for steel structure parts of power, metallurgy, petrochemical, machinery and other industries, such as boiler, pressure vessel, pressure pipe, ship body weld and welding structure of various types of ferromagnetic material surface and magnetic particle flaw detection of near surface defect.

This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".

AC function for surface testing
HWDC function for subsurface testing

Product features
Sealed, durable construction
Chemical and abrasion resistant
AC and HWDC operation options for surface and sub-surface inspection
Exceeds ASTM lifting specifications

The three modes of power supply can be freely chosen:
There are places directly connected to AC power supply, which can be directly connected with AC power supply.
It is possible to use AC magnetized power supply through switch key to supply HWDC power without battery
When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.
The power display function can display the current battery power, and has the function of sound and light alarm.
Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.
Adjustable magnetization
Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.
Technical parameter
Working temperature: -10 ~ +40 C
Storage temperature: -20 ~ 50 C
Relative humidity: <80% non condensation
Work temperature rise: <18 C
Temporary load rate: >50%
Sensitivity: A1 standard test piece 15/50 groove clearly displayed.
AC minimum power hoisting power: >4.5kg (44N)
DC minimum power hoisting power: >18.1kg (177N)

Model guide

1. Technical Specifications:


HCDX-230E AC-DC switch
Magnetic powder flaw detector host 1
Power line 1
Instrument box 1
3A (AC-DC Switching Converters)
Certificate 1
Manual 1

Defect examples: Defect location:
Inclusions Seams Surface and subsurface Ideal for: Fatigue cracks
Shrink cracks Tears Laps Field testing pot inspections
Welding slag Grinding cracks In-service inspections
Quenching cracks Demanding environments
Weld inspection
