Portable AC&DC Magnetic Yoke Flaw Detector

Large Image : Portable AC&DC Magnetic Yoke Flaw Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HCDX-Y45 series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	in carton
Delivery Time:	5~8 working days after payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 sets per month

Contact Now

Portable AC&DC Magnetic Yoke Flaw Detector

Description

Product Name:	Magnetic Yoke Flaw Detector	Uv Lamp Intensity:	≥5000uw/cm²
White Lamp Intensity:	≥1450Lux	Power Supply:	220V
Probe Pole Distance:	40mm-200mm	Yoke Weight:	2.0 Kg
Highlight:	portable magnetic yoke flaw detector , AC DC magnetic yoke tester , non-destructive testing equipment with warranty

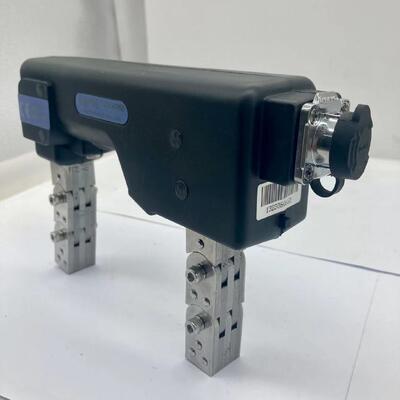

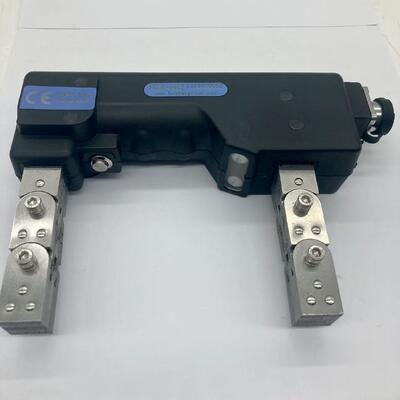

Portable AC&DC Magnetic Yoke Flaw Detector

HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light

HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light

HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light

1. Product introduction

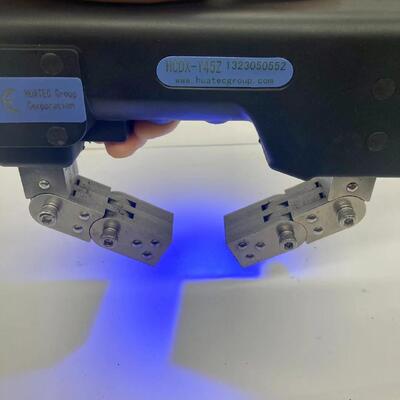

• The probe can choose two lighting modes: ultraviolet lamp and white lamp.

• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.

• Working mode: AC and DC (for model HCDX-Y45DC)

• AC operation: The probe is connected to AC220V power supply for flaw detection.

• DC operation: The probe can be connected to the battery for DC operation.

2. Technical parameters

Sensitivity	A1 15/100 standard test piece; Clear display of defect
Power supply	HCDX-Y45: AC220V HCDX-Y45DC: AC220V and DC12V HCDX-Y45Z: AC220V
Probe pole distance	40mm-200mm

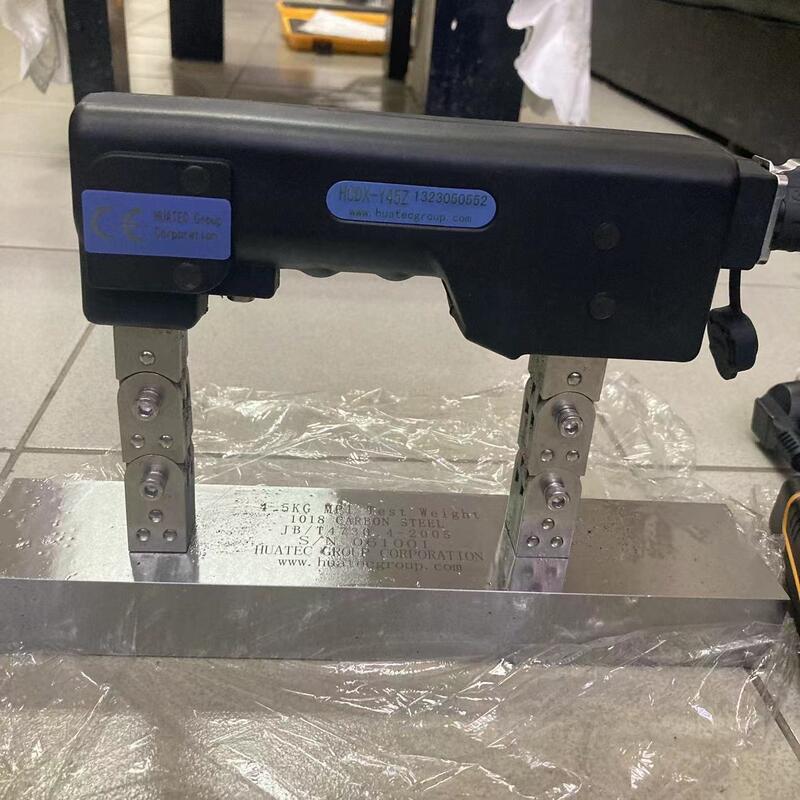

Lifting force	AC≥45N DC≥177N
Illumination of white lamp	≥1450Lux (only when connected to AC)
UV lamp intensity	≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function)
Machine size	210mm (length) 48mm (width) 150mm (height)
Yoke weight	2.0 kg

3. Configuration

HCDX-Y45 configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Y45DC configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Power adapter 1 pc

• Lead acid battery 1 pc

• DC power cable 1 pc

• Battery pack 1pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Y45Z configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

Portable AC&DC Magnetic Yoke Flaw Detector 0

Portable AC&DC Magnetic Yoke Flaw Detector 1
