HUATEC DG-4020 Dual AC&DC operation handheld LED-UV Lamp

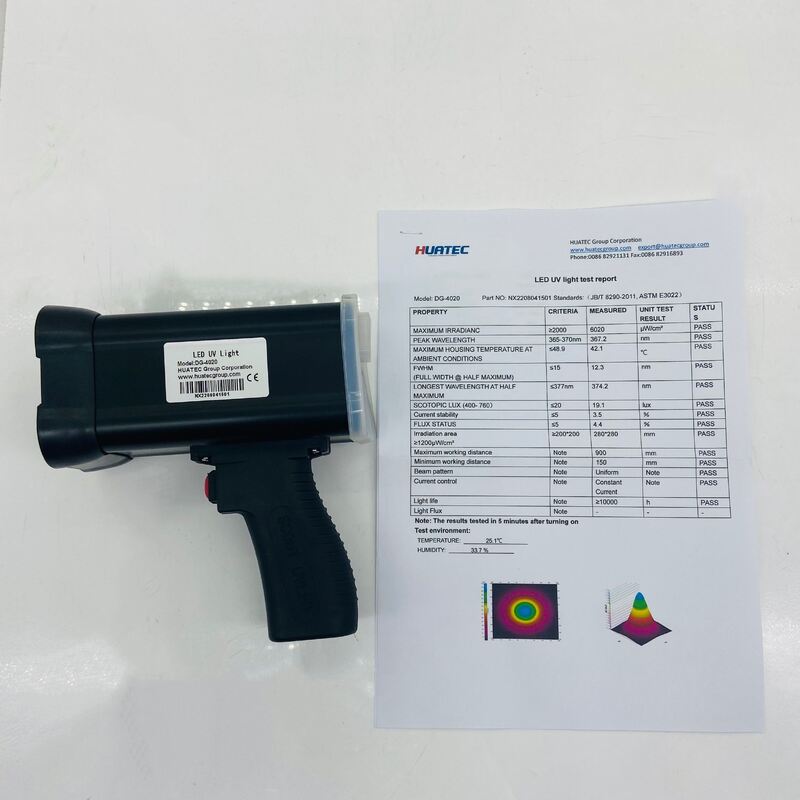

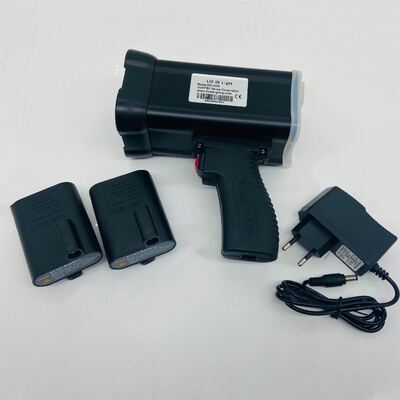

Large Image : HUATEC DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DG-4020

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HUATEC DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Description

Style:

Handheld

UV(Light)-FLUX Indoor Temperature 25℃:

6000uW/cm2

White Light Content:

≤3LUX

Flux Error:

0-40℃ ±10%

Highlight:

HUATEC DG-4020 LED-UV Lamp

handheld LED-UV Lamp dual operation

AC&DC LED-UV Lamp for testing

DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Parameters:

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H

Feature:

Strictly comply with ASTM E3022
UV-B content is 0
Battery life of 2-3 hours
Quick Battery Replacement
Only 560g of battery is included
Temperature rise of external surface under continuous operation < 8K (8℃)
It has colour filter glass, and the white light content is less than 20LUX
Can work with AC directly and also with DC battery
