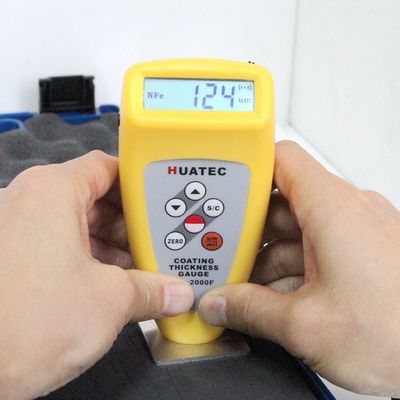

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Large Image : TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-2000F

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Description

Testing Range(um):	0-1250um	Using Environment::	0-+45℃(32℉-104℉),≤90%RH
Resolution)(um):	0.1μm /1μm	Measurement Accuracy:	±1-3%n Or ±2.5um
Min. Measuring Area:	6mm	Min. Sample Thickness:	0.3mm
Highlight:	Eddy current coating thickness gauge , Anodizing paint thickness tester , Separate probe thickness gauge

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Application:

1.TG-2000F can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Technical Parameter

Operating principle	eddy current
Measuring range	0-1250um
Resolution	0.1/1
Accuracy	±1-3%n or ±2.5um
Min. measuring area	6mm
Min. sample thickness	0.3mm
Battery indicator	low battery indicator
Metric/ imperial	convertible
Power supply	4x1.5V AAA(UM-4)battery Auto power off
Operating conditions	0-+45℃(32℉-104℉),≤90%RH
Dimensions&weight	126x65x27mm,81g(not including battery)

Standard Delivery

Main unit (1250um) 1

F type probe 1

F calibration base set 1

Calibration foil set 1set (4 foils)

Carrying case 1

Instruction manual 1

Optional Accessories

Cable and software for RS-232C

Customized testing range upto 3000 micron

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester 0

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester 1

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester 2
