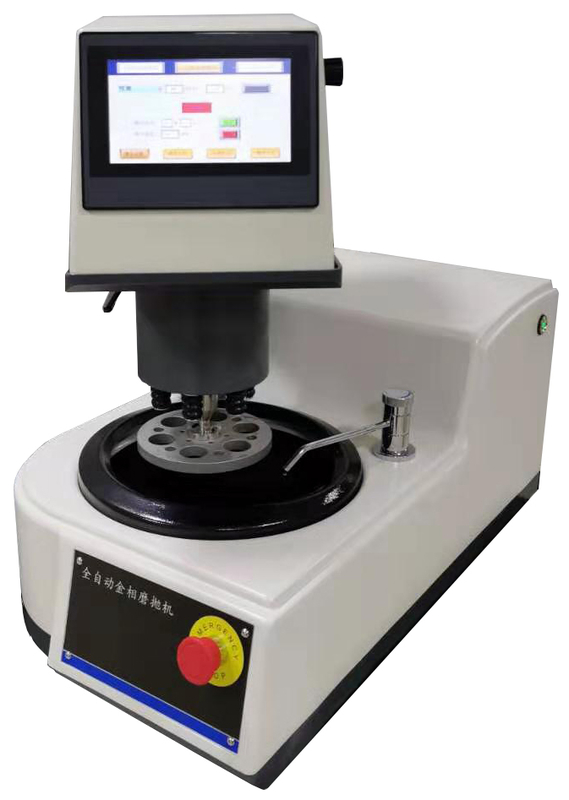

HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

Large Image : HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HAP-1000XP/HAP-2000XP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

Description

Rotate Speed:	50-1000 RPM Reverse Rotation Can Be Switched	Sample Plate Speed:	30-200 RPM Reverse Rotation Can Be Switched
Working Air Source Pressure:	More Than 0.6MPa	Motor Power:	0.75 Kw
Power Supply:	AC220V, 50/60Hz, 2KW
Highlight:	automatic metallographic grinding machine , multi-point pressure polishing machine , central pressure metallographic polisher

HAP-1000XP/HAP-2000XP Fully Automatic Multi-point Pressure & Central Pressure Metallographic Grinding and Polishing Machine

Key Specifications

Rotate speed	50-1000 RPM reverse rotation can be switched
Sample plate speed	30-200 RPM reverse rotation can be switched
Working air source pressure	More than 0.6MPa
Motor power	0.75 Kw
Power supply	AC220V, 50/60Hz, 2KW

Product Overview

The HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding and Polishing Machine features:

Single sample independent loading
Center loading of sample tray
Capacity for six samples simultaneously
Optional four-channel automatic drip device

Key Features

Supports both single and double grinding discs
Electromagnetic automatic locking for grinding head
Magnetic anti-stick plate for easy replacement
Touch screen interface for intuitive operation
Bilingual interface (Chinese/English)
Three working modes: Automatic, Single Process, and Manual
U disk storage for 300 processes with import/export capability

Technical Parameters

Item	HAP-1000XP	HAP-2000XP
Station	Single disc	Double disc
Working disc diameter	Standard with φ254mm (optional φ230mm/φ203mm, customized φ304mm) with magnetic conversion disk system
Sample holder	30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized)
Overall dimensions	760 x 470 x 700mm	760 x 730 x 700mm
Weight	63kg	74kg

Main Attachments

Item	Quantity (Single disk/double disk)
Central loading mechanism	1 set
Magnetic disk (254mm)	1/2 pcs
Diamond suspension polishing fluid (1 micron, 6 micron 200 ml)	Each 1 bottle
Anti-sticking plate	2 pcs

Optional Accessories

Four channel automatic dripper
Mobile terminal remote control operation module
Air pump
Huawei FLAT-panel M6 10.8in Kirin 980 4GB+64GB WiFi

Optional Consumables

Product	Description
MAGNOMET	Anti-sticky disc 5 pieces/box Diameter: Φ254mm Special anti-sticky layer coating Reusable
GSC250A	100 pieces/package Material: black carborundum Sand sizes available from P80# to 2000#

Product Images
