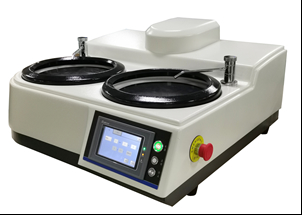

HPA-2X Metallographic Grinding Polishing Machine 254mm PLC Control

HPA-2X Metallographic Grinding Polishing Machine 254mm PLC Control
HPA-2X Metallographic Grinding Polishing Machine 254mm PLC Control

Large Image :  HPA-2X Metallographic Grinding Polishing Machine 254mm PLC Control

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HPA-2X
Contact Now

HPA-2X Metallographic Grinding Polishing Machine 254mm PLC Control

Description
Working Plate Diameter: Standard Φ254mm (optional Φ203mm / Φ230mm) Speed: 100-1000r/min To Turn Forward And Reverse Can Be Switched
Four Files Manually: V1=300r/min, V2=500r/min, V3=600r/min, V4=800r/min (user Can Be Changed) Eight Period Of Automatic: Can Program Eight Speed, Running Time And Disc Steering Switch.
Highlight:

HPA-2X metallographic polishing machine

,

254mm grinding polishing machine

,

PLC control metallographic equipment

HPA-2X Advanced Metallographic Grinding & Polishing Machine

Product features

  • PLC control: speed, grinding time, direction of rotation, water valve closing and other grinding parameters, and automatic saving, easy to call;
  • Touch screen interface: convenient grinding parameters setting, intuitive state display, simple operation;
  • Four-speed manual mode;
  • 8 sets of automatic modes;
  • The parameters of each mode are set by the user; Stepless speed regulation can be set at each step of grinding and polishing.
  • Water drop position can be rotated to adjust, water flow can be adjusted, grinding start and end, water automatically open and shut down;
  • The equipment runs smoothly and has low noise;
  • Connect and control the polishing dropper (optional).

Technical parameters

Item specifications
Working plate diameter Standard Φ254mm (optional Φ203mm / Φ230mm)
speed 100-1000r/min to turn forward and reverse can be switched
Four files manually V1=300r/min, V2=500r/min, V3=600r/min, V4=800r/min (user can be changed)
Eight period of automatic Can program eight speed, running time and disc steering switch.
Motor power 0.75 kw
Power supply Voltage: AC220V Frequency: 50Hz
Overall dimension (length * width * height) 760 x 730 x 360
Weight 46kg

































Standard attachments



Item Quantity Item Quantity
Anti-stick disc (254mm) 2 Triangle valve 1
Magnetic working disc (254mm) 2 Teflon tape 1
Inlet pipe Φ 8 1 Quick screw connector SNZ08-04 1
Outlet pipe Φ 25 1 stylus 1
Rubber gasket 1 Diamond suspension grinding polishing fluid 6 micron 200 ml 1
filter screen (60 mesh, double layer) 4 hook 1

Sandpaper (with back adhesive , diameter 250)

180#, 800#, 1000#

Each 2



Polishing cloth (with back adhesive, 250mm)

Flocking (brown), canvas

 Each 1
Operating instruction 1 Certificate of approval 1
