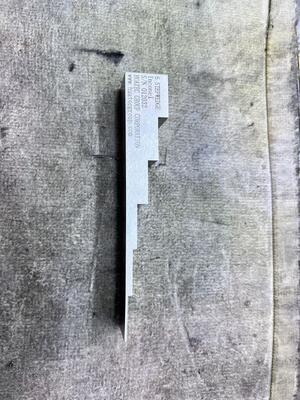

Industrial NDT 6 Step Thickness Calibration Block for Ultrasonic Thickness Gauge Calibration

Large Image : Industrial NDT 6 Step Thickness Calibration Block for Ultrasonic Thickness Gauge Calibration

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	5sets/Month

Contact Now

Industrial NDT 6 Step Thickness Calibration Block for Ultrasonic Thickness Gauge Calibration

Description

Step Thickness Value:

2-3-5-8-12-20-25mm

Material:

Carbon Steel / Stainless Steel / Aluminum / Duplex Stainless Steel, Etc.

Highlight:

NDT thickness calibration block

ultrasonic thickness gauge calibration block

6 step calibration block for NDT

Industrial NDT 6 Step Thickness Calibration Block CS Type for Ultrasonic Thickness Gauge Calibration

Application:
*Daily calibration and linear verification of ultrasonic thickness gauge
*Sensitivity inspection and aging test of ultrasonic probe
Factory inspection, after-sales maintenance and periodic verification of measuring instruments
*NDT training, operator skill assessment and daily operation training
*Quality inspection for petrochemical, power, shipbuilding, pressure vessel industry
*Sound velocity adjustment and zero point calibration of thickness measuring equipment

Basic Information:

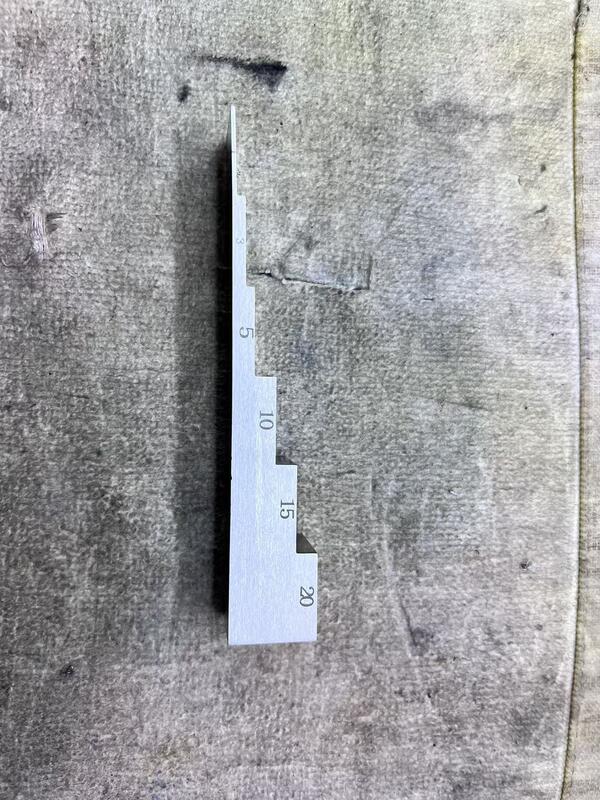

Step Thickness	1mm, 3mm, 5mm, 10mm, 15mm, 20mm
Standard Sound Velocity	5900 m/s (carbon steel standard)
Executive Standard	GB/T 27664, ASTM E797, ISO 16810
Linear Error	≤ ±0.1mm in full range
Working Temperature	-10℃ ~ +60℃
Thickness Tolerance	±0.05mm
Material	Carbon steel / Stainless steel / Aluminum / Duplex stainless steel, etc.

Industrial NDT 6 Step Thickness Calibration Block for Ultrasonic Thickness Gauge Calibration 0
