TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester
TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester

Large Image :  TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: TG-14S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester

Description
Measurement Range: 1.5-240.0mm Receiving Gain: ≤ 100dB
Detectable Workpiece Material: Carbon Steel, Cast Steel, Alloy Steel, Stainless Steel, Copper, Aluminum, Titanium And Other Conductor Materials Minimum Diameter (curvature): 8mm
Type Of Sound Wave: Shear Wave The Maximum Tilt Angle Of The Probe: 25°
Host Storage Temperature Range: 0~+40℃
Highlight:

portable EMAT thickness meter

,

electromagnetic ultrasonic tester

,

permanent magnet thickness gauge

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester


TG-14S electromagnetic ultrasonic thickness gauge is an ultra small, non-contact thickness measuring instrument without acoustic coupling agent. It can measure the thickness of metal or magnetic conductive materials.The instrument has the following features:

■ Easy to carry

■ The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement

■ It is insensitive to the coating and can realize the thickness measurement of coated workpieces or corroded metal pipe.

■ Without acoustic coupling agent, it can realize the thickness measurement of high-temperature workpiece


Technical Specifications

Detectable workpiece material

carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, titanium and other conductor materials
Measurement range

1.5-240.0mm

 the maximum value of the measurement range is affected by the properties of the measured material, sound attenuation coefficient, surface conditions and other factors
Error range

When the thickness of workpiece is less than 10mm, the error is 0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200) mm (H is the thickness of workpiece)
Receiving gain ≤ 100dB
Normal temperature probe

≤ 80 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc., with a maximum liftable clearance of 3mm
High temperature probe ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel, with a maximum liftable clearance of 2mm
Lift-off effect

(actual lift-off distance is related to material properties and degrees), anti-rust film, salt deposits or any other insulating coating (oil, varnish, porcelain, plastic, etc.) can be used as operating clearance
The minimum diameter (curvature) of the workpiece 8mm
The maximum tilt angle of the probe 25°
Probe field excitation method permanent magnet
Type of sound wave shear wave
Power supply  built in lithium battery, working time not less than 2.5 hours
The normal working temperature range of the host -10~+50℃
Host storage temperature range 0~+40℃
Host weight 250g (with normal temperature probe)
Dimensions of the host length 151mm x width 76mm x thickness 37mm


General characteristics:

a) The instrument adopts the principle of electromagnetic ultrasonic, and there is no need to grind the surface of the workpiece during the detection process, and no coupling agent is required

b) Configurable probe types: normal temperature probe (≤80℃, short-term measurement), high temperature probe (≤800℃, short-term measurement)

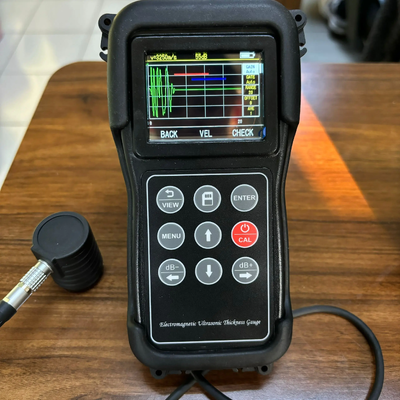

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester 0

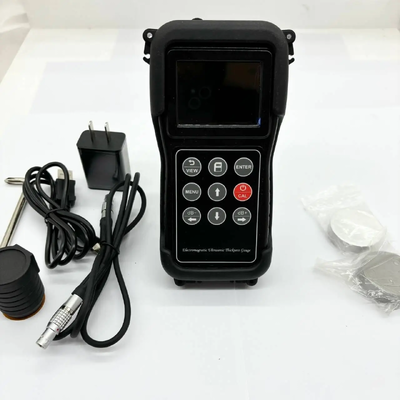

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester 1

TG-14S Portable EMAT Thickness Meter 1.5~240mm Range Permanent Magnet Electromagnetic Ultrasonic Tester 2
